[ZBX-23778] Building zabbix_agent2 for windows Created: 2023 Dec 04  Updated: 2023 Dec 06  Resolved: 2023 Dec 06

Status: Closed
Project: ZABBIX BUGS AND ISSUES
Component/s: Agent (G)
Affects Version/s: 6.4.8
Fix Version/s: None

Type: Incident report Priority: Trivial
Reporter: Filippo Gaspari Assignee: Edgar Akhmetshin
Resolution: Won't fix Votes: 0
Labels: None
Remaining Estimate: Not Specified
Time Spent: Not Specified
Original Estimate: Not Specified

Attachments: PNG File image-2023-12-04-12-32-00-209.png

 Description

Can't do agent 2 build for windows because of a missed reference:{}

Steps to reproduce:

  1. Downloading zabbix source
  2. Preparing environment via 2 Building Zabbix agent 2 on Windows
  3. Executing mingw32-make PCRE2=C:\Temp\Zabbix\build\pcre2 OPENSSL=C:\Temp\Zabbix\build\openssl

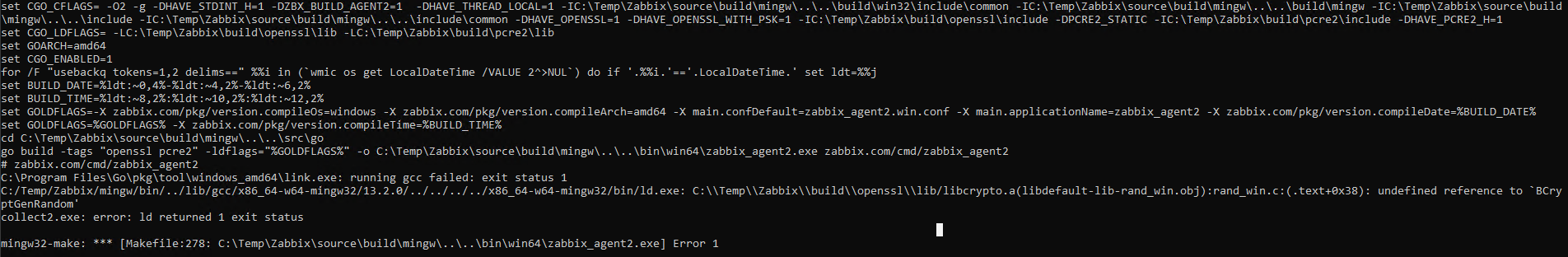

Result:

set CGO_CFLAGS= -O2 -g -DHAVE_STDINT_H=1 -DZBX_BUILD_AGENT2=1  -DHAVE_THREAD_LOCAL=1 -IC:\Temp\Zabbix\source\build\mingw\..\..\build\win32\include\common -IC:\Temp\Zabbix\source\build\mingw\..\..\build\mingw -IC:\Temp\Zabbix\source\build\mingw\..\..\include -IC:\Temp\Zabbix\source\build\mingw\..\..\include\common -DHAVE_OPENSSL=1 -DHAVE_OPENSSL_WITH_PSK=1 -IC:\Temp\Zabbix\build\openssl\include -DPCRE2_STATIC -IC:\Temp\Zabbix\build\pcre2\include -DHAVE_PCRE2_H=1
set CGO_LDFLAGS= -LC:\Temp\Zabbix\build\openssl\lib -LC:\Temp\Zabbix\build\pcre2\lib
set GOARCH=amd64
set CGO_ENABLED=1
for /F "usebackq tokens=1,2 delims==" %%i in (`wmic os get LocalDateTime /VALUE 2^>NUL`) do if '.%%i.'=='.LocalDateTime.' set ldt=%%j
set BUILD_DATE=%ldt:~0,4%-%ldt:~4,2%-%ldt:~6,2%
set BUILD_TIME=%ldt:~8,2%:%ldt:~10,2%:%ldt:~12,2%
set GOLDFLAGS=-X zabbix.com/pkg/version.compileOs=windows -X zabbix.com/pkg/version.compileArch=amd64 -X main.confDefault=zabbix_agent2.win.conf -X main.applicationName=zabbix_agent2 -X zabbix.com/pkg/version.compileDate=%BUILD_DATE%
set GOLDFLAGS=%GOLDFLAGS% -X zabbix.com/pkg/version.compileTime=%BUILD_TIME%
cd C:\Temp\Zabbix\source\build\mingw\..\..\src\go
go build -tags "openssl pcre2" -ldflags="%GOLDFLAGS%" -o C:\Temp\Zabbix\source\build\mingw\..\..\bin\win64\zabbix_agent2.exe zabbix.com/cmd/zabbix_agent2
# zabbix.com/cmd/zabbix_agent2
C:\Program Files\Go\pkg\tool\windows_amd64\link.exe: running gcc failed: exit status 1
{color:#de350b}C:/Temp/Zabbix/mingw/bin/../lib/gcc/x86_64-w64-mingw32/13.2.0/../../../../x86_64-w64-mingw32/bin/ld.exe: C:\\Temp\\Zabbix\\build\\openssl\\lib/libcrypto.a(libdefault-lib-rand_win.obj):rand_win.c:(.text+0x38): undefined reference to `BCryptGenRandom'{color}
collect2.exe: error: ld returned 1 exit status

mingw32-make: *** [Makefile:278: C:\Temp\Zabbix\source\build\mingw\..\..\bin\win64\zabbix_agent2.exe] Error 1


 Comments
Comment by Filippo Gaspari [ 2023 Dec 04 ]

Comment by Alexey Pustovalov [ 2023 Dec 04 ]

I can not confirm the problem. Could you check the procedure for Docker: https://github.com/zabbix/zabbix-docker/actions/runs/7047604201/job/19183230279

Comment by Filippo Gaspari [ 2023 Dec 04 ]

Could you better explain what to check in the docker procedure?

Comment by Edgar Akhmetshin [ 2023 Dec 05 ]

The link given to you shows that Agent 2 can be built on Windows with Github Actions without issues for all recent versions:
https://github.com/zabbix/zabbix-docker/actions/runs/7047604201/job/19183230279

Full building procedure can be found here:
https://github.com/zabbix/zabbix-docker/blob/6.4/Dockerfiles/build-base/windows/Dockerfile.agent2

Comment by Filippo Gaspari [ 2023 Dec 05 ]

Hi, thank you for your response.

I have checked the dockefile for the environment setup for the agent build and I confirm that everything works.I have, however, two questions:

  1. Is it normal that the resulting exe weighs 48MB while the executable downloadable from https://cdn.zabbix.com/zabbix/binaries/stable/6.4/6.4.7/zabbix_agent2-6.4.7-windows-amd64-openssl-static.zip weighs 18MB?
  2. Is there a docker file for the i386 version as well?

Thank you.

Comment by Alexey Pustovalov [ 2023 Dec 06 ]

1. It is provided with all debug symbols. So it is bigger in final application.
2. Is there a docker file for the i386 version as well? - No. You can modify Dockerfiles for that.

Comment by Edgar Akhmetshin [ 2023 Dec 06 ]

1 - yes, build process is different, you can optimise final result on your own. Also Go binaries are large because they are statically linked (except for library bindings using cgo). Example how to build you already have.
2 - no, we are not providing i386 image for Windows.

Please be advised, we had to move your ticket as it was created in the public tracker. We shall continue troubleshooting within your support account, but please be more careful next time, as you might accidentally share sensitive data in the public section. For future reference here is the link to your support account: https://support.zabbix.com/servicedesk/customer/portals
