[ZBXNEXT-8505] Integration with Cisco SD-WAN (ex Viptela) Created: 2023 Jun 15  Updated: 2024 Apr 10  Resolved: 2023 Aug 14

Status: Closed
Project: ZABBIX FEATURE REQUESTS
Component/s: Templates (T)
Affects Version/s: None
Fix Version/s: 6.0.20rc1, 6.4.5rc1, 7.0.0alpha3, 7.0 (plan)

Type: New Feature Request Priority: Trivial
Reporter: Aleksandre Sebiskveradze Assignee: Aleksandre Sebiskveradze
Resolution: Fixed Votes: 1
Labels: None
Remaining Estimate: Not Specified
Time Spent: Not Specified
Original Estimate: Not Specified

Attachments: File README.md     PNG File image-2023-12-03-13-52-20-794.png     PNG File image-2023-12-03-13-53-19-455.png     PNG File image-2023-12-03-13-55-45-734.png     File template_net_cisco_sdwan_http.yaml
Issue Links:
Sub-task
depends on ZBX-23112 PHP exceptions while Jenkins build Closed
Team: Team INT
Sprint: Sprint 101 (Jun 2023), Sprint 102 (Jul 2023), Sprint 103 (Aug 2023)
Story Points: 3

 Description

Integration with Cisco SD-WAN (ex Viptela)

 Comments
Comment by Aleksandr Iantsen [ 2023 Jul 20 ]

Implemented in:

Comment by Lidija Marsova (Inactive) [ 2023 Jul 24 ]

Documentation updated:

Comment by Ivan [ 2023 Dec 03 ]

I wanted ti test this template, I have Cisco Vmanage version 20.9.4. I created api username zabbix password zabbix and set api url https://192.168.100.20.

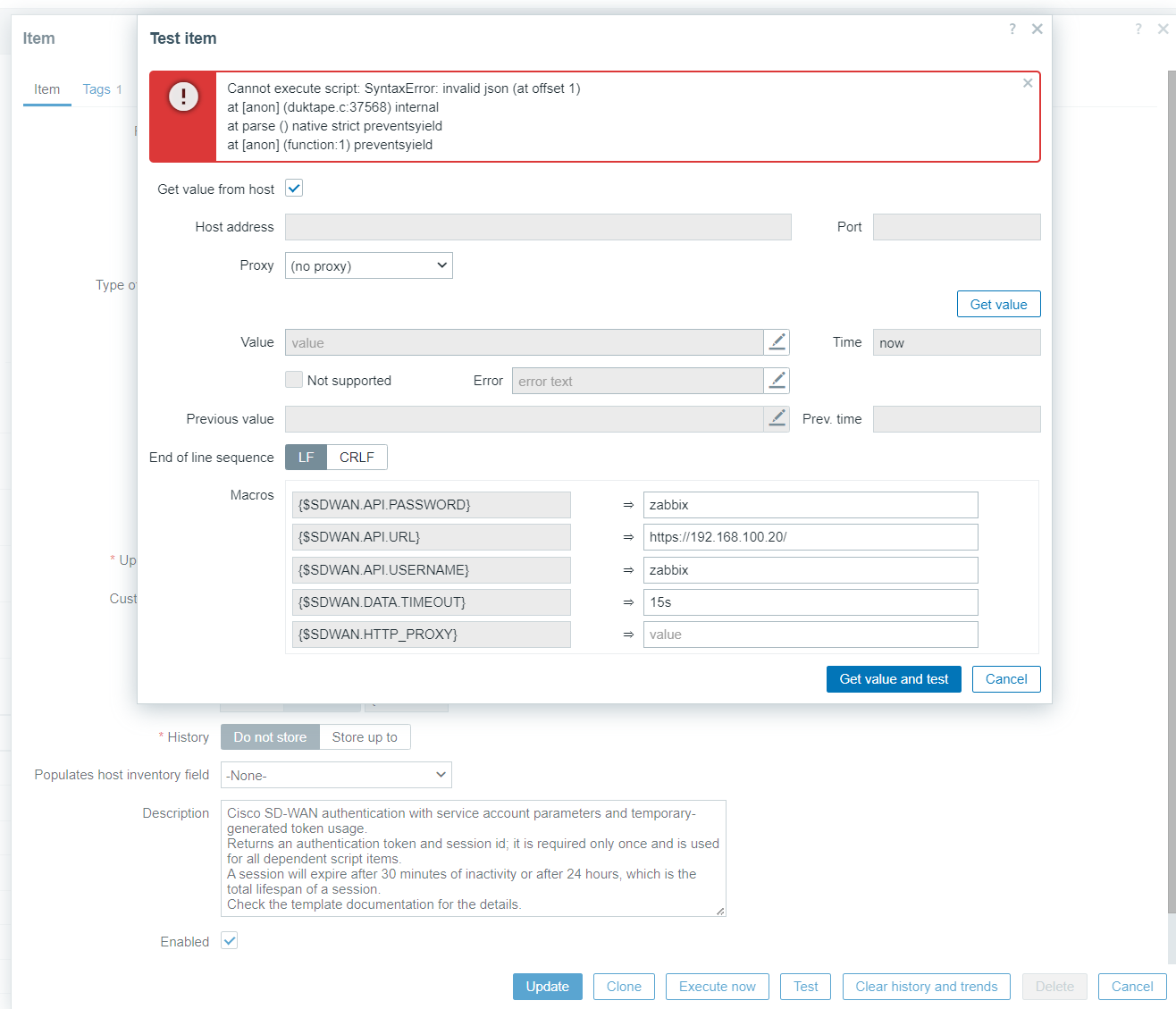

When I execute inside a host (Cisco SD-WAN by HTTP: SD-WAN: Authentication) I get succesfull request and can see that authentification is OK (Authentication succeeded for zabbix, source IP: 192.168.100.199), but when I try to do test I get the error and zabbix server is down

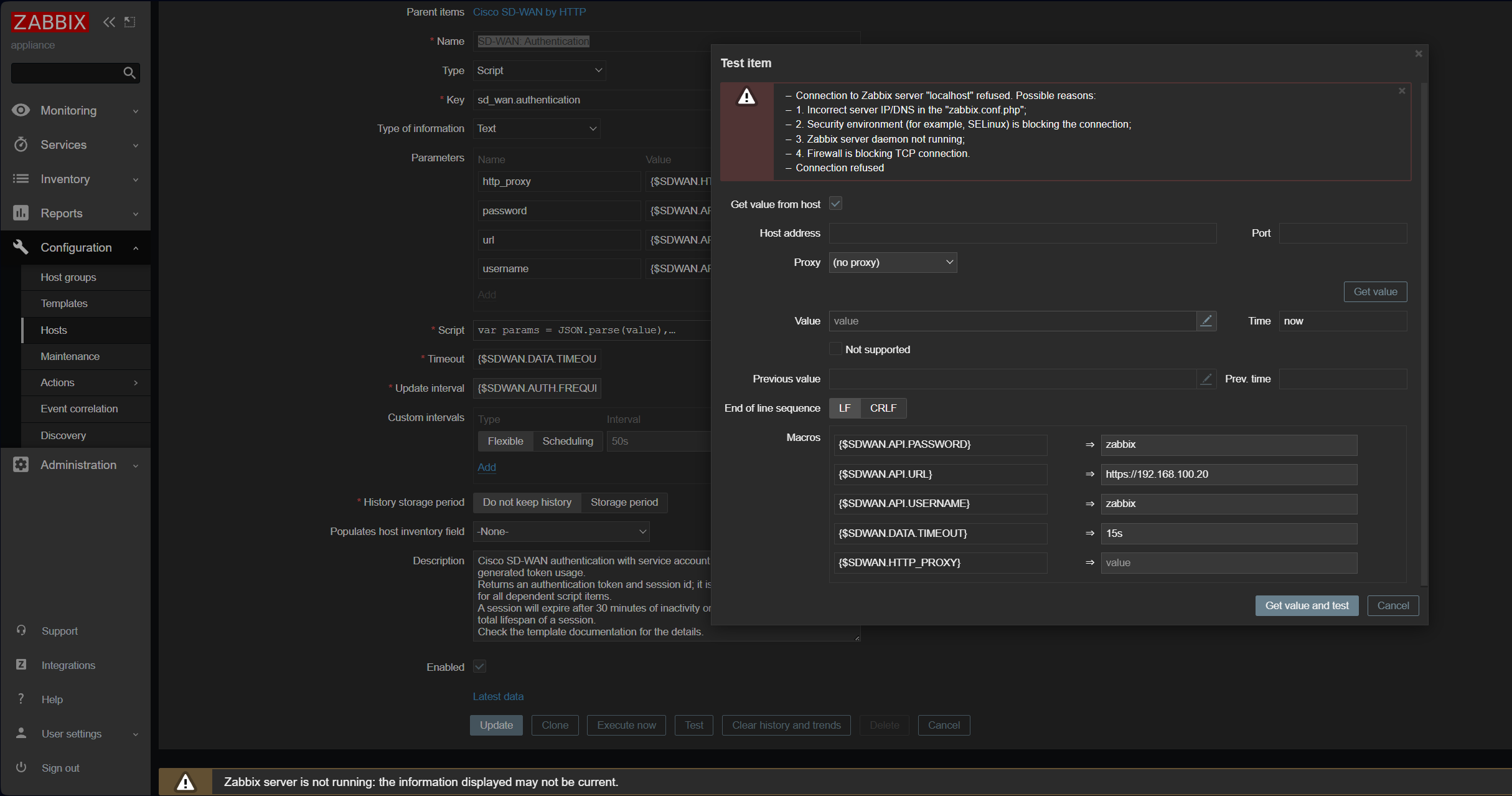

and for LTS version 6

Comment by Ivan [ 2023 Dec 03 ]

and get strange error -

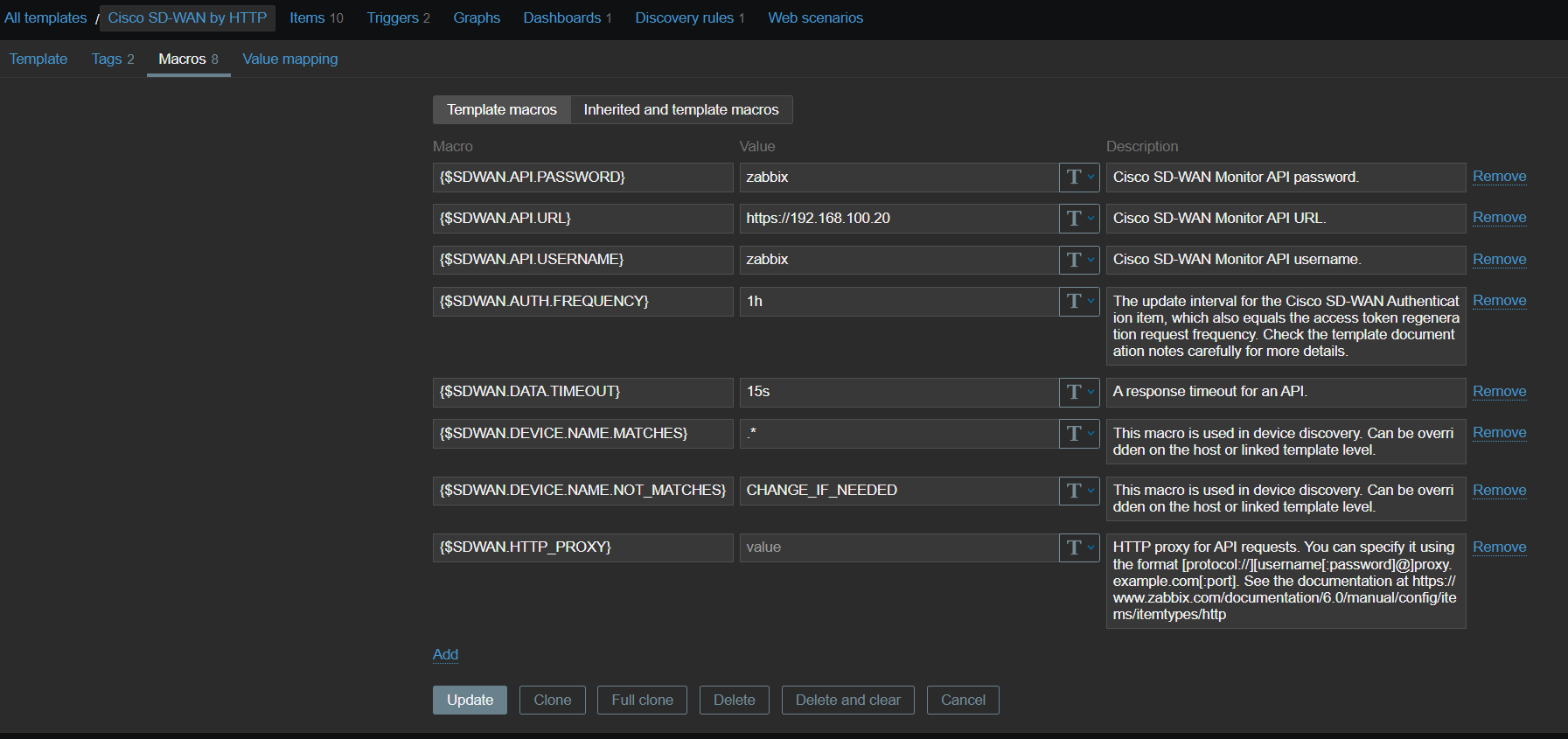

2023-12-02 23:16:06 Please change {$SDWAN.API.URL} macro to the proper value.

Comment by Aleksandr Iantsen [ 2023 Dec 05 ]

Hello Aslens, thank you for contacting us.
Could you specify please the Zabbix version you've tested the template in?
Also I'm not sure that the previous screenshot below the "for LTS version 6" shows an issue with the template. It seems like you have a problem with connection from the Zabbix frontend to your Zabbix server. Please make sure the connection between them is successful.

Comment by Ivan [ 2023 Dec 05 ]

Hello @Aleksandr Iantsen, thanks for answer. For my test lab I use zabbix ready appliance (Zabbix 6.0 LTS) from ovf file (https://cdn.zabbix.com/zabbix/appliances/stable/6.0/6.0.24/zabbix_appliance-6.0.24-ovf.tar.gz).

When I saw this template I decided to test, and it worked with Cisco SD-WAN version 20.9.4 (Latest recommended version). I changed template a litle it stil worked, after I decided to reinstall zabbix and from that time it haven't been working. All the time I get error. I tried zabbix 7 but the same behaviour... strange.



Maybe I can pin some logs? if you need
