Uploaded image for project: 'ZABBIX BUGS AND ISSUES'
  1. ZABBIX BUGS AND ISSUES
  2. ZBX-25154

Even if you are not using "Service Monitoring", the memory usage of the "service manager" process increases when a trigger event occurs.

XMLWordPrintable

    • Icon: Problem report Problem report
    • Resolution: Fixed
    • Icon: Blocker Blocker
    • 6.0.33
    • Server (S)
    • None
    • AlmaLinux release 8.9 (Midnight Oncilla)
      zabbix_server (Zabbix) 6.0.17(I confirmed that memory has increased even in 6.0.33.)
      postgres (PostgreSQL) 13.14
    • S24-W36/37, S24-W38/39
    • 2

      Steps to reproduce:

      1. Please set up Zabbix6.0 according to the following document.
        https://www.zabbix.com/download?zabbix=6.0&os_distribution=alma_linux&os_version=8&components=server_frontend_agent&db=pgsql&ws=apache
        Note

        The verification was done with postgresql, but a similar problem occurred with mysql as well.


      2. Set the following item.
        log[/var/log/messages,"(err)|(recover)"]



      3. Set the following trigger.
        Expression
         find(/Zabbix server/log[/var/log/messages,"(err)|(recover)"],,"regexp","err")=1
        PROBLEM event generation mode
         Multiple



      4. generate a large number of trigger events
        • example)Output a large amount of target keywords to the log using the “logger” command
          $ for i in {1..500000};do logger "errorA $i" ;done

          Note

          rsyslog may freeze so you have to run "systemctl restart rsyslog" every time

      Result:
      The vsz value output by the following command will increase.

      ps -eo vsz,comm,euser,args



      It seems that recovering the trigger event does not free the memory.

      • graph
      • log
        zabbix_server.log(trace log)

        32296:20240814:135204.742 problem events : 484875 (670849 slots)
        32296:20240814:135217.276 problem events : 484879 (670849 slots)
        32296:20240814:135229.750 problem events : 484883 (670849 slots)
        32296:20240814:155214.091 problem events : 866277 (1509427 slots)
        32296:20240814:163337.834 problem events : 0 (1509427 slots)  ←Slots do not decrease even after event recovery
        32296:20240814:163342.860 problem events : 0 (1509427 slots)
        32296:20240814:163347.876 problem events : 0 (1509427 slots)
        32296:20240814:163352.907 problem events : 0 (1509427 slots)
        32296:20240814:175004.716 problem events : 0 (1509427 slots)
        32296:20240814:174530.551 problem events : 239796 (1509427 slots) ←Even if an event occurs, the slot will not increase by the amount that can be covered by the increase slot.
        32296:20240814:174537.471 problem events : 239796 (1509427 slots)
        797268:20240816:163354.922 problem events : 233774 (298153 slots) ←It is released once when the service is restarted, but if there are many events, it will be loaded immediately after startup, so it will increase quickly.
        797268:20240816:163401.682 problem events : 233777 (298153 slots)
        797268:20240816:171640.382 problem events : 437874 (670849 slots)
        1207:20240823:175048.334 problem events : 1354135 (2264149 slots)
        1207:20240823:175048.334 problem events : 1354135 (2264149 slots)
        400721:20240823:183049.364 problem events : 1354135 (2264149 slots) ←Service resumed. Same as above.
        401478:20240823:183600.106 problem events : 1354135 (2264149 slots)
        401860:20240823:184246.547 problem events : 1354135 (2264149 slots)
        401860:20240827:160522.204 problem events : 1354144 (2264149 slots)
        401860:20240827:161302.397 problem events : 1 (2264149 slots)
        401860:20240827:181853.195 problem events : 1 (2264149 slots)
        401860:20240828:175200.411 problem events : 3 (2264149 slots)
        670438:20240828:175519.163 problem events : 3 (1009 slots) ←Service resumed. Since there are few events, the number of slots will not increase.

        1. problem_event_count.png
          221 kB

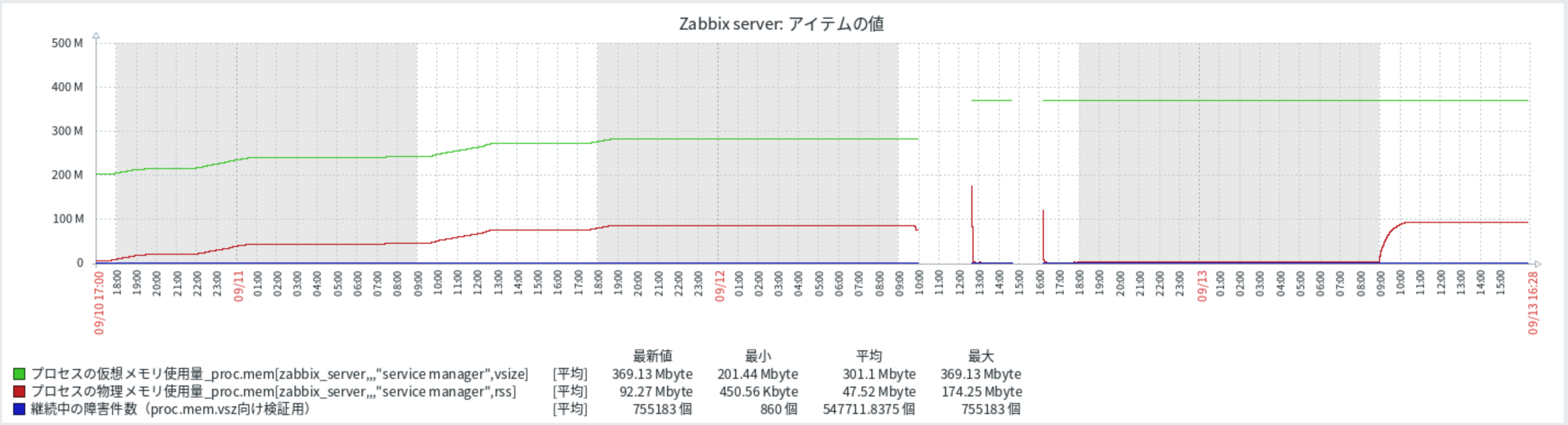

        2. proc.mem_rss&vsize.png
          286 kB
        3. ps_command_vsz&rss.png
          288 kB
        4. servicemanager_vsz_graph.png
          243 kB
        5. smem_command_pss&uss&rss.png
          318 kB
        6. zbx25154_graph_sample.png
          350 kB
        7. zbx25154_host.png
          417 kB
        8. zbx25154_item.png
          391 kB
        9. zbx25154_trigger.png
          425 kB
