Problem report
-
Resolution: Unresolved
-
Trivial
-
7.0.12rc1, 7.2.6rc1, 7.4.0rc1 (master)
-
Sprint candidates
Steps to reproduce:
Scenario #1 :
Clicking Apply button, when element / shape selected leads to console error

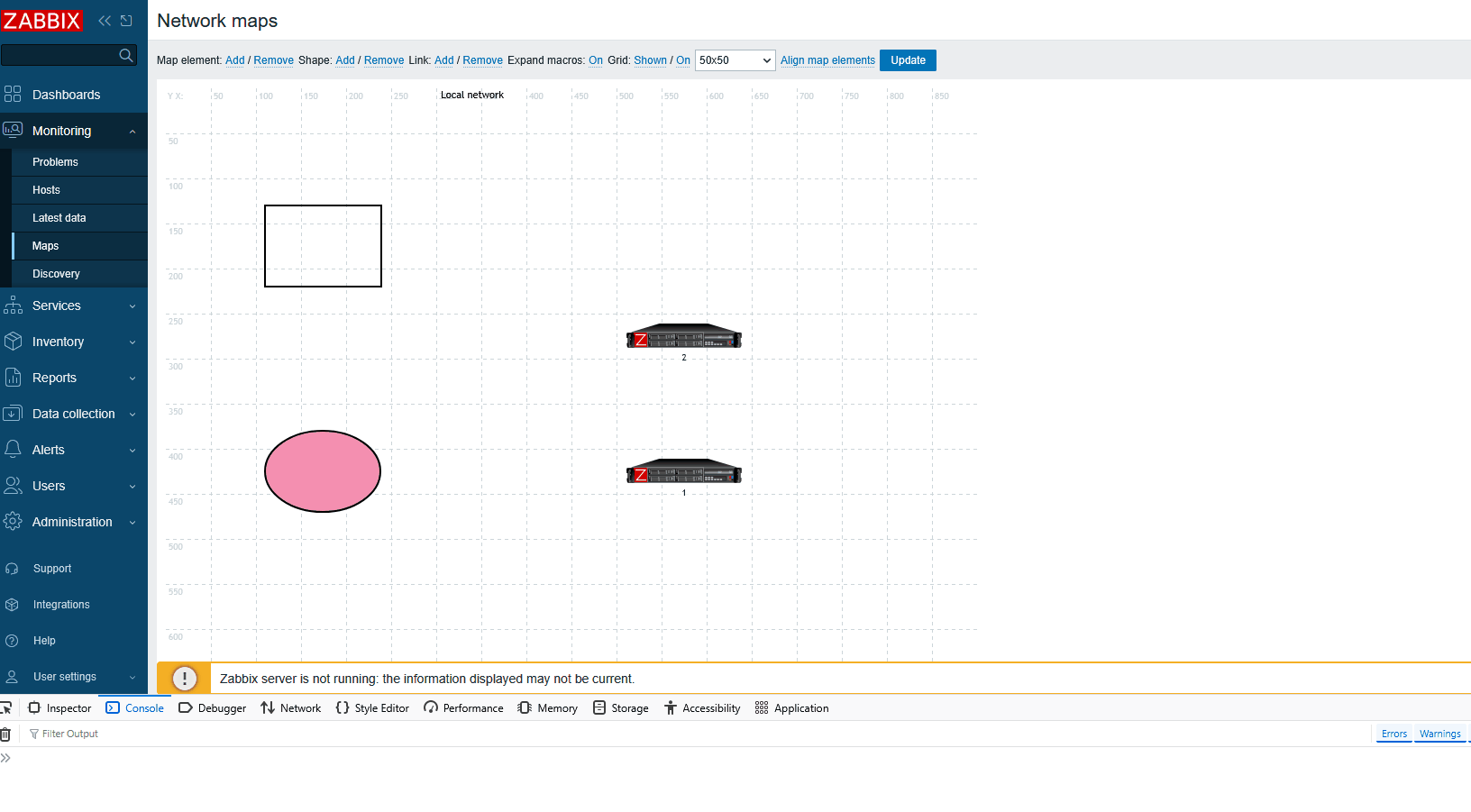

- Create new sysmap
- Add any element
- Add shape
- Click on the element, check that edit form is displayed
- Right click on the shape
- Click Apply in the displayed edit form
Result: Console error
Uncaught Try to single update element, when more than one selected.
Note: clicking remove button in such scenario is not having any results.
Scenario #2:
Clicking apply button results in unclear behavior, if both elements or shapes are selected - element is duplicated and placed on top of the existing one. Additionally - shape is not properly displayed.
- Create new sysmap
- Add any 2 elements or shapes
- Click on the first element / shape
- Right click on second element / shape
- Click Apply in the displayed edit form
Result: both components are copied and moved to the same spot.
- depends on
-
ZBXNEXT-875 A way to control z order of icons on a map (z-index)
-
- Needs documenting
-
