Incident report
-
Resolution: Won't fix
-
Trivial
-
None
-
7.0.15
-
None
Steps to reproduce:
- Configure SNMP on your test machine so that it responds to 1.3.6.1.2.1.2.2.1.2.
- Check it like so from Linux command line:
snmpwalk -v2c -c public 127.0.0.1 1.3.6.1.2.1.2.2.1.2 iso.3.6.1.2.1.2.2.1.2.1 = STRING: "lo" iso.3.6.1.2.1.2.2.1.2.2 = STRING: "enp0s3" iso.3.6.1.2.1.2.2.1.2.3 = STRING: "enp0s8"
- Add SNMP interface to a Zabbix host.
- Open dialog for creating a Zabbix item on the host.
- Enter arbitrary item name.
- Choose type SNMP agent type.
- Enter arbitrary item key.
- Select the SNMP host interface.
- Set SNMP OID:
discovery[{#IF.DESCR},1.3.6.1.2.1.2.2.1.2]
- Set update interval you wish.
- Finish creating the item.
- Go to latest data and make sure it is operational and collects data like so:
2025-06-19 05:41:51 PM [{"{#SNMPINDEX}":"1","{#IF.DESCR}":"lo"},{"{#SNMPINDEX}":"2","{#IF.DESCR}":"enp0s3"},{"{#SNMPINDEX}":"3","{#IF.DESCR}":"enp0s8"}]
Result:

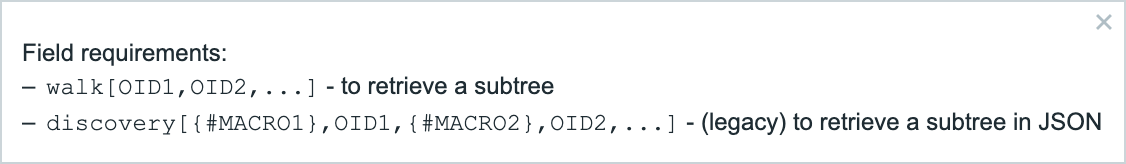

- If you go back to the item creation edit dialog and hover the mouse over the
sign near the SNMP OID field, there are walk[], get[] and OID options described. However, discovery[] option is not described.

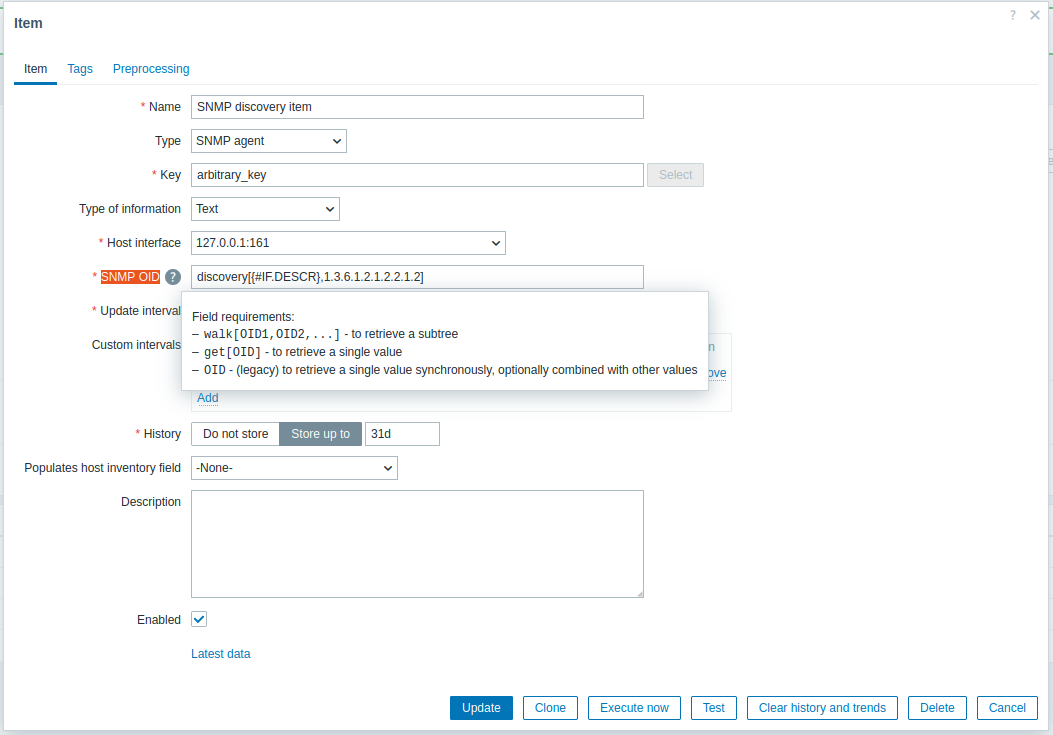

See screenshot - The documentation page https://www.zabbix.com/documentation/7.0/en/manual/discovery/low_level_discovery/examples/snmp_oids_walk does not describe the discovery[] option. However, it looks like it used to describe it https://www.zabbix.com/documentation/3.4/en/manual/discovery/low_level_discovery/snmp_oids. It was described for a discovery rule, not for an item, but I failed to find a similar description anywhere in modern documentation.
Expected:
- The help in Zabbix fronted should display possibility to use discovery[] in SNMP OID field.
- discovery[] syntax of SNMP OID field should be documented.
Note:
Observed at Zabbix 7.0. Other versions were not checked (yet).
