Problem report
-
Resolution: Unresolved
-
Trivial
-
None
-
7.4.1rc1, 8.0.0alpha1 (master)
In cases, when already non-prototypes items are added to a graph prototype (discovered by nested LLD), and LLD rule is no longer discovered and removed - the graphs are not deleted.
Steps to reproduce:
- Import the host: host-graph-issue.yaml
- Start Zabbix server
- Execute the discovery rule "TEST" on the imported host for several times, to discover all the entities
- Observe that graphs are created, and contains the discovered item, and host's trapper item "trap"
- Change the status Discover -> No for LLD prototype: "Discover tablespaces for {#DB}"
- Execute the LLD "TEST"
- Open graphs
Result:

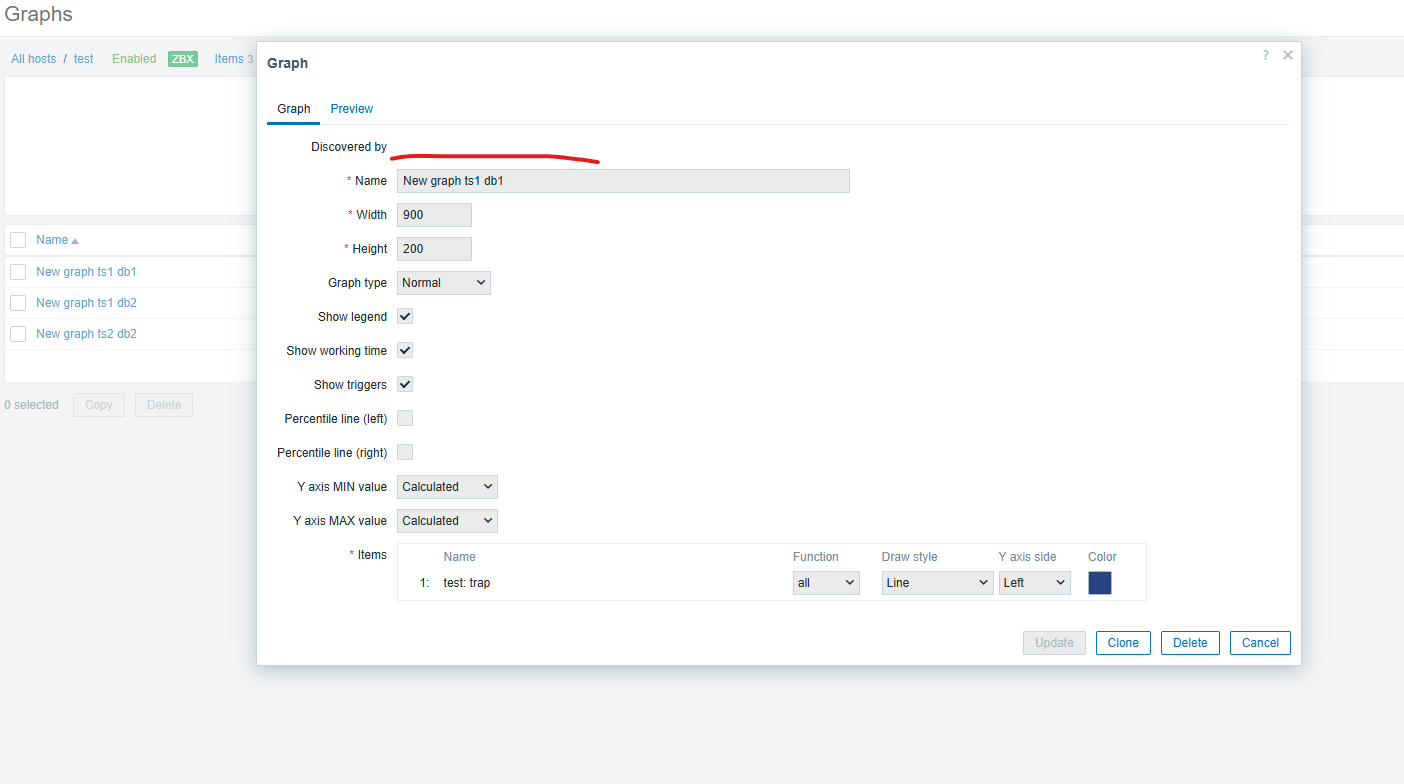

The graphs, that were created by Nested LLD, are still present. (Displayed with empty discovered by field and error in the php log.)
Error in php log:
Undefined array key "discoveryRulePrototype" [zabbix.php:17 -> require_once() -> ZBase->run() -> ZBase->processRequest() -> ZBase->processResponseFinal() -> CView->getOutput() -> include() -> CTabView->addTab() -> CDiv->__construct() -> CTag->addItem() -> CObject->addItem() -> unpack_object() -> CPartial->getOutput() -> include() -> CConfigFile->{closure}() in app/partials/graph.edit.graph.tab.php:34] Trying to access array offset on value of type null [zabbix.php:17 -> require_once() -> ZBase->run() -> ZBase->processRequest() -> ZBase->processResponseFinal() -> CView->getOutput() -> include() -> CTabView->addTab() -> CDiv->__construct() -> CTag->addItem() -> CObject->addItem() -> unpack_object() -> CPartial->getOutput() -> include() -> CConfigFile->{closure}() in app/partials/graph.edit.graph.tab.php:39]
Expected:
Probably in such case, graphs related to non-existing nested LLD should be removed.
