Widget disappears or fails to configure after linking to geomap widget

XMLWordPrintable

    • Prev.Sprint, S25-W38/39
    • 1

      Steps to reproduce:

      1. In any existing host change Inventory to Automatic and set the following values:
        • Location latitude: 56.95387
        • Location longitude: 24.22067
      2. Add a Geomap widget to the dashboard.
        (No need to configure it — default settings are fine.)
      3. Save the dashboard.
      4. Set the refresh rate of the Geomap widget to 10 seconds.
      5. Wait for at least 10 seconds to ensure the widget refreshes at least once.
      6. Click Edit Dashboard (Note: This stops widget auto-refresh, but we needed at least one refresh to happen beforehand.)
      7. Add any widget that can listen to hosts (e.g., a Gauge widget).
      8. Link this new widget to the host from the Geomap widget.

      Result:

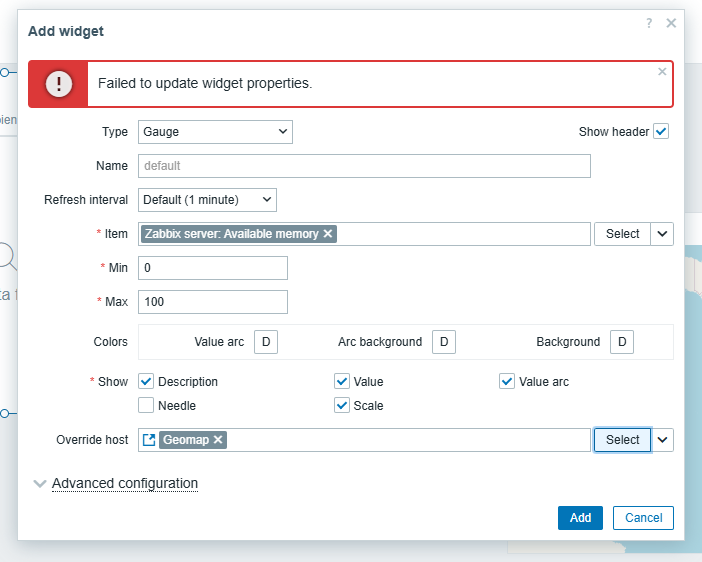

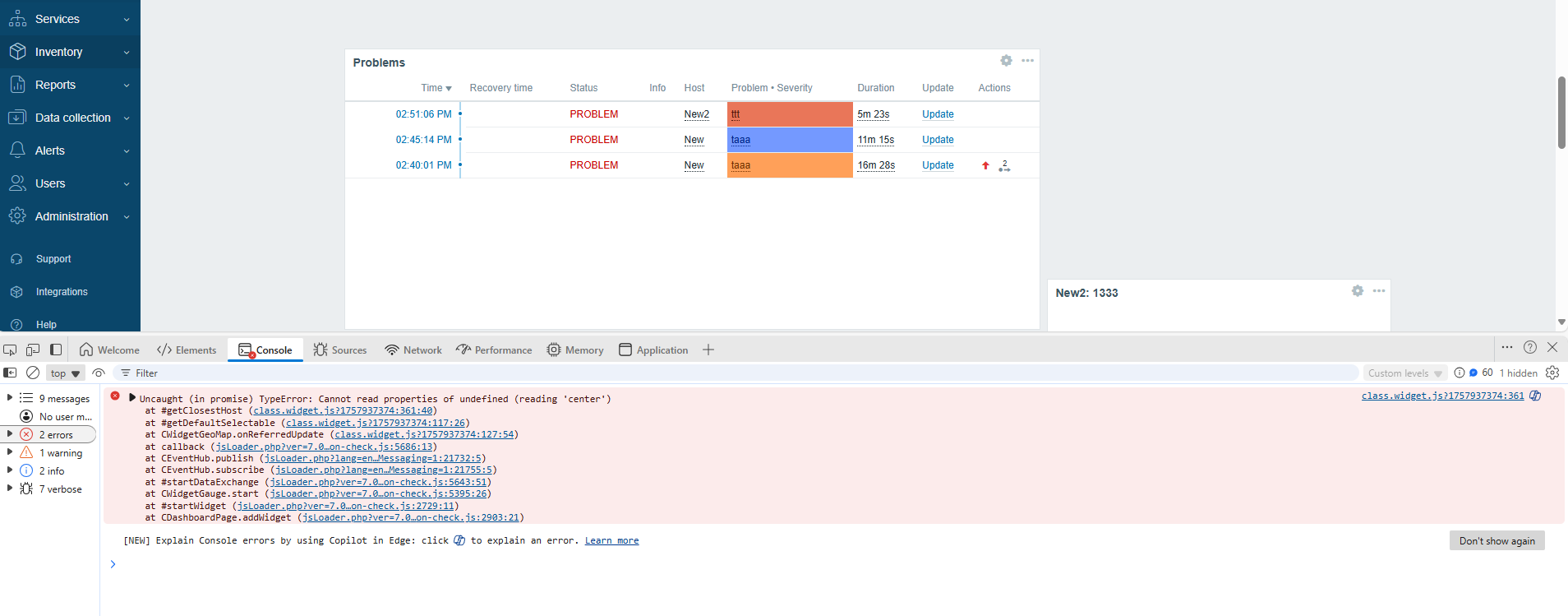

      An error appears in the console, and the widget disappears/or an error that the widget cannot be configured.

      Expected:
      The widget should be configured and work as expected.
