[ZBX-17715] Missing items in "Latest Data" (GUI option verified) Created: 2020 May 12  Updated: 2024 Apr 10  Resolved: 2020 Jul 15

Status: Closed
Project: ZABBIX BUGS AND ISSUES
Component/s: Frontend (F)
Affects Version/s: 5.0.0
Fix Version/s: 5.0.3rc1, 5.2.0alpha1, 5.2 (plan)

Type: Problem report Priority: Trivial
Reporter: Cryptage Assignee: Andrejs Verza
Resolution: Fixed Votes: 4
Labels: frontend
Remaining Estimate: Not Specified
Time Spent: Not Specified
Original Estimate: Not Specified
Environment:

Debian 10.4 64 bits
MariaDB 10.3
Zabbix Server 5.0.0


Attachments: PNG File Screenshot from 2020-07-03 13-57-41.png     PNG File Zbx1.png     PNG File Zbx2.png     PNG File Zbx3.png     PNG File image-2020-07-21-14-03-21-518.png     File latest.patch     GIF File zbx_latest_data_filter_reset_bug.gif
Issue Links:
Causes
causes ZBX-18092 Latest data option group apps has dis... Closed
Duplicate
is duplicated by ZBX-17714 Missing items in "Latest Data" (GUI o... Closed
is duplicated by ZBX-17770 Items is not stacking correctly in 'L... Closed
is duplicated by ZBX-17775 Latest Data Application not correct find Closed
is duplicated by ZBX-17829 Not everything shown in "Latest Data"... Closed
is duplicated by ZBX-17863 In latest data page not correct reset... Closed
is duplicated by ZBX-17890 Latest Data Page not Showing Items (C... Closed
Sub-task
depends on ZBX-17528 A lot of SQL queries in Latest data page Closed
Team: Team B
Sprint: Sprint 65 (Jun 2020), Sprint 66 (Jul 2020)
Story Points: 1

 Description

Description

In "Latest data" some values are missing. The GUI shows only 8 or 9 values when there are more.

In GUI option, value is "500" so it should work.

Steps to reproduce:

  1. Go to latest data
  2. Filter in "Name" with a value like "version" (more than 10 values)
  3. Click on "apply"

Result:

Some items are missing :

  • If no hosts are specified, only 9 are visible.
  • If hosts are specified, for 10 hosts there's only 8 items.
  • If hosts are specified, for 11 hosts there's only 7 items.
  • If more than 10 hosts are specified, we're unable to get more than 9 items.

Result:

Before Zabbix 5.0.0 all items were visible.



 Comments
Comment by Cryptage [ 2020 May 13 ]

With a value "2000" in "Limit for search and filter results" that's ok.

It seems that Zabbix counts every item even if there's a filter (and others are hidden).

Before Zabbix 5.0 that problem didn't exist. Is there there any modification on Zabbix 5.0 to explain this problem ?

Comment by Andrejs Verza [ 2020 Jun 18 ]

Resolved in development branch feature/ZBX-17715-5.0.

Comment by Andrejs Verza [ 2020 Jun 18 ]

Additional changes were introduced within this branch:

  1. Possibility to show/hide applications in the list was removed as redundant after the pager was introduced on the Latest Data view.
  2. Sorting data by the Last check was also removed because of poor usability.
Comment by dimir [ 2020 Jun 18 ]

s/usability/performance/ ?

Comment by Andrejs Verza [ 2020 Jun 18 ]

To answer dimir's question: The sorting by the Last check was removed because of poor usability, not performance.

Since data sorting by the Last check means that the rows are changing often, this created two usability issues:

  • Data grouping by hosts/applications became misleading.
  • Paging functionality became unusable because of constantly changing data rows.
Comment by dimir [ 2020 Jun 26 ]

Thanks a lot for explanation! I see the point now. Hopefully the ones that were disappointed by this feature been removed will understand why.

Comment by Andrejs Verza [ 2020 Jul 03 ]

Fixed in:

Comment by Andrejs Verza [ 2020 Jul 15 ]

Updated documentation:

Comment by Marco Hofmann [ 2020 Jul 17 ]

Hi @Andrejs Verza
Can you please explain me this change?
> Possibility to show/hide applications in the list was removed as redundant after the pager was introduced on the Latest Data view.
I miss that feature a lot since 5.0.2 and don't understand the alternative you mention.
I could filter the application group I need to see, but the previous behavior was easier IMHO.

Comment by dimir [ 2020 Jul 21 ]

Good news, grouping by application is coming back in ZBX-18092.

Comment by Marco Hofmann [ 2020 Jul 21 ]

Question to my understanding: Under what circumstances did the error actually occur? Only if Latest Data would be rendered on more than ONE page, right? (because paging)

So on 5.0.0, if my GUI option limited me to like 200 results, and my Hosts always have <200 Items, I would've never encountered this bug? (Except I filter Latest data for two or more hosts, but lets ignore that for the question.) Is that true?

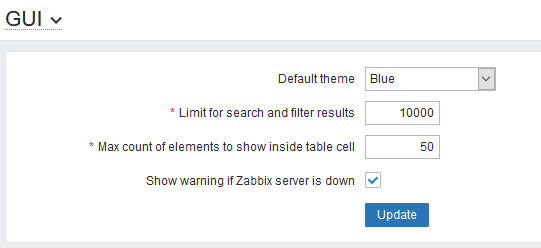

If yes, could you please explain me which of the two GUI options affect the paging of Latest Data:


"Limit for search and filter results""Max count of elements to show inside table cell"

And last but not least, I will post my opinion regarding ZBX-18092 as soon as I understand the context. Thanks for clarifying!

Comment by Martins Valkovskis [ 2020 Jul 21 ]

The paging is actually affected by the user settings, which is a separate menu option just before the sign-out button.

Comment by Andrejs Verza [ 2020 Jul 21 ]

The problem appeared sometimes if there were more items to be listed than the search limit set by user in user settings. The root cause of the problem was that some filter settings were applied to the already limited (by the search limit) set of items.

Comment by Mikhail Grigorev [ 2020 Aug 25 ]

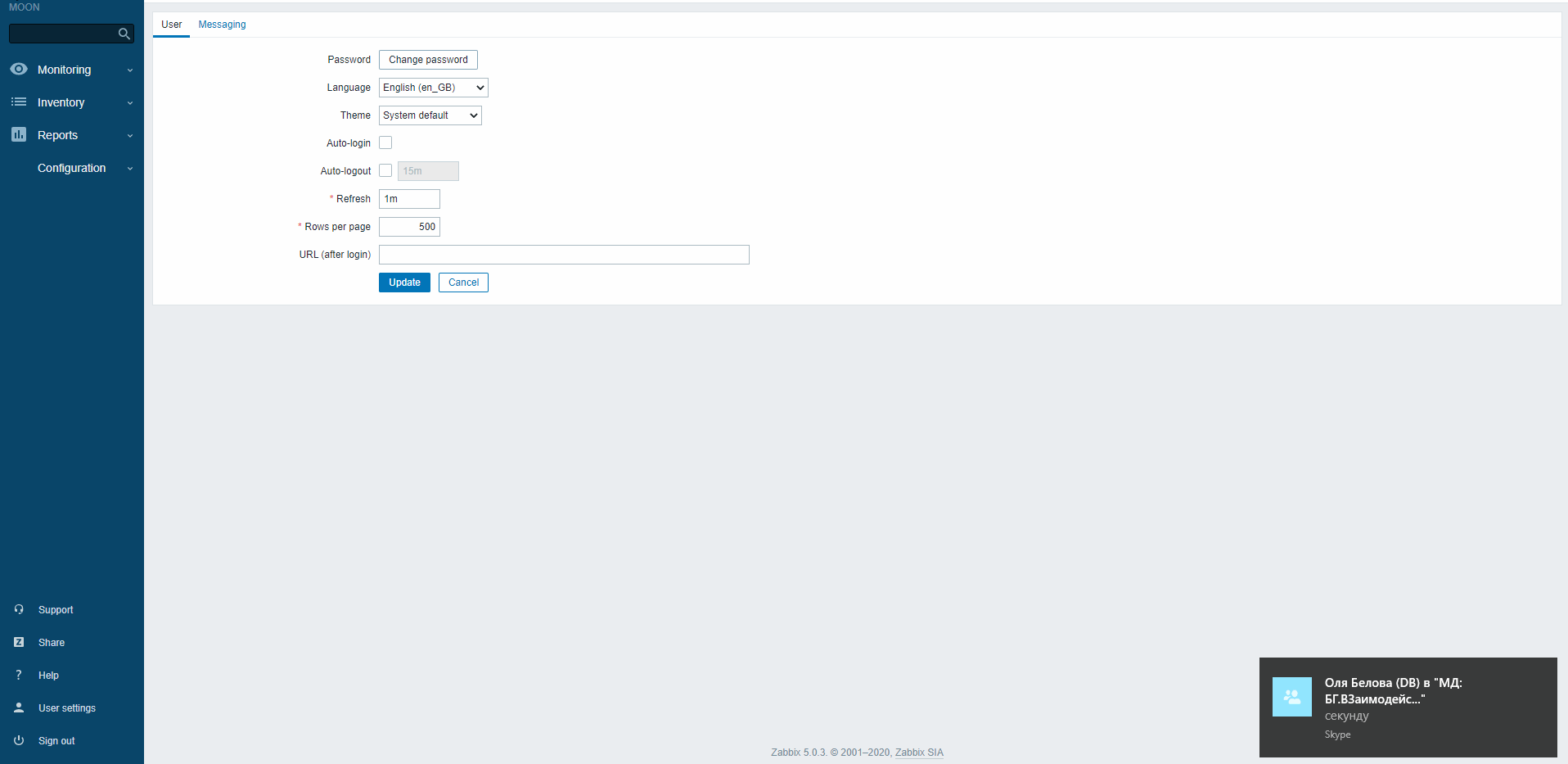

Hi, in latest data page not correct reset filter and not clean latest data

My issue ZBX-17863 is closed, as duplicate of ZBX-17715, but not fixed

See video in latest 5.0.3 release

Comment by Marco Hofmann [ 2020 Aug 26 ]

cherts I think you should create a new ZBX issue, and state there "Caused by ZBX-18092"
