[ZBX-22566] SNMP packet sent 600 packets per second in 6.4 ， make switch cpu 90% Created: 2023 Mar 22 Updated: 2023 Nov 15 Resolved: 2023 Jun 27 |
|
| Status: | Closed |
| Project: | ZABBIX BUGS AND ISSUES |
| Component/s: | None |
| Affects Version/s: | None |
| Fix Version/s: | None |
| Type: | Problem report | Priority: | Trivial |
| Reporter: | Boqian Zhang | Assignee: | Edgar Akhmetshin |
| Resolution: | Won't fix | Votes: | 0 |
| Labels: | None | ||
| Remaining Estimate: | Not Specified | ||
| Time Spent: | Not Specified | ||
| Original Estimate: | Not Specified | ||
| Environment: |
Zabbix Server and Proxy 6.4 |
||
| Attachments: |
cisco snmp.yaml
|
||||
| Issue Links: |
|
||||
| Description |
|
Steps to reproduce:
We have many access switches, including Cisco 2960 and 2950 switches. Occasionally, the Zabbix proxy will send SNMP requests, resulting in hundreds of packets per second, causing the switch CPU to become overloaded. Sometimes this issue can last for several hours. Currently, the solution is to restart the Zabbix proxy service using "systemctl restart zabbix-proxy" on the Zabbix proxy server. After the service restarts, the issue is resolved, and the device's CPU returns to normal and will not recur for a certain period of time. However, this issue occurs intermittently on different models of these switches, and the high CPU usage is due to over 500 SNMP packets per second from the Zabbix proxy. We are currently using the 6.4 mpCisco IOS telate, and high-end and large devices have not experienced this issue. The problem is related to common access Cisco switches.
Result:
|[10:30:26|http://10.0.6.152/tr_events.php?triggerid=71698&eventid=31142961]| | |Warning|[12:15:26|http://10.0.6.152/tr_events.php?triggerid=71698&eventid=31142961]|RESOLVED| |SDS2_JL1|#1: High CPU utilization (over 90% for 5m)|1h 45m|Update| |class: networkcomponent: cpuscope: performance| |h4. 10:00| | | | | |[05:16:09|http://10.0.6.152/tr_events.php?triggerid=87467&eventid=31013911]| | |Warning|[05:26:10|http://10.0.6.152/tr_events.php?triggerid=87467&eventid=31013911]|RESOLVED| |SDS7_JL9|#1: High CPU utilization (over 90% for 5m)|10m 1s|Update| |class: networkcomponent: cpuscope: performance| |h4. 05:00| | | | | |[01:11:10|http://10.0.6.152/tr_events.php?triggerid=87477&eventid=30869783]| | |Warning|[01:36:10|http://10.0.6.152/tr_events.php?triggerid=87477&eventid=30869783]|RESOLVED| |SDS7_JL13|#1: High CPU utilization (over 90% for 5m)|25m|Update| |class: networkcomponent: cpuscope: performance| |h4. Today| | | | | |[2023-03-21 21:11:40|http://10.0.6.152/tr_events.php?triggerid=87477&eventid=30769749]| | |Warning|[2023-03-21 21:16:10|http://10.0.6.152/tr_events.php?triggerid=87477&eventid=30769749]|RESOLVED| |SDS7_JL13|#1: High CPU utilization (over 90% for 5m)|4m 30s|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 08:21:01|http://10.0.6.152/tr_events.php?triggerid=82434&eventid=30397964]| | |Warning|[2023-03-21 08:31:01|http://10.0.6.152/tr_events.php?triggerid=82434&eventid=30397964]|RESOLVED| |SDS6_JL10|#1: High CPU utilization (over 90% for 5m)|10m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 08:16:19|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30396244]| | |Warning|[2023-03-21 09:01:19|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30396244]|RESOLVED| |SDS3_JL3|#1: High CPU utilization (over 90% for 5m)|45m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 08:10:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30394328]| | |Warning|[2023-03-21 08:20:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30394328]|RESOLVED| |SDS6_JL7|#1: High CPU utilization (over 90% for 5m)|10m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 07:21:02|http://10.0.6.152/tr_events.php?triggerid=82434&eventid=30375876]| | |Warning|[2023-03-21 07:36:01|http://10.0.6.152/tr_events.php?triggerid=82434&eventid=30375876]|RESOLVED| |SDS6_JL10|#1: High CPU utilization (over 90% for 5m)|14m 59s|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 07:16:49|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30374588]| | |Warning|[2023-03-21 07:21:20|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30374588]|RESOLVED| |SDS3_JL3|#1: High CPU utilization (over 90% for 5m)|4m 31s|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 07:15:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30374028]| | |Warning|[2023-03-21 07:20:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30374028]|RESOLVED| |SDS6_JL7|#1: High CPU utilization (over 90% for 5m)|5m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 06:16:19|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30351486]| | |Warning|[2023-03-21 06:46:19|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30351486]|RESOLVED| |SDS3_JL3|#1: High CPU utilization (over 90% for 5m)|30m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 05:16:01|http://10.0.6.152/tr_events.php?triggerid=82434&eventid=30329645]| | |Warning|[2023-03-21 05:36:01|http://10.0.6.152/tr_events.php?triggerid=82434&eventid=30329645]|RESOLVED| |SDS6_JL10|#1: High CPU utilization (over 90% for 5m)|20m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 05:15:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30329605]| | |Warning|[2023-03-21 05:35:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30329605]|RESOLVED| |SDS6_JL7|#1: High CPU utilization (over 90% for 5m)|20m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 05:11:49|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30327760]| | |Warning|[2023-03-21 05:21:19|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30327760]|RESOLVED| |SDS3_JL3|#1: High CPU utilization (over 90% for 5m)|9m 30s|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 04:25:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30311362]| | |Warning|[2023-03-21 05:00:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30311362]|RESOLVED| |SDS6_JL7|#1: High CPU utilization (over 90% for 5m)|35m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 03:15:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30285431]| | |Warning|[2023-03-21 03:40:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30285431]|RESOLVED| |SDS6_JL7|#1: High CPU utilization (over 90% for 5m)|25m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 02:16:19|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30263710]| | |Warning|[2023-03-21 02:21:19|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30263710]|RESOLVED| |SDS3_JL3|#1: High CPU utilization (over 90% for 5m)|5m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 01:21:19|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30244256]| | |Warning|[2023-03-21 01:26:19|http://10.0.6.152/tr_events.php?triggerid=89282&eventid=30244256]|RESOLVED| |SDS3_JL3|#1: High CPU utilization (over 90% for 5m)|5m|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 01:21:02|http://10.0.6.152/tr_events.php?triggerid=82434&eventid=30244216]| | |Warning|[2023-03-21 01:26:01|http://10.0.6.152/tr_events.php?triggerid=82434&eventid=30244216]|RESOLVED| |SDS6_JL10|#1: High CPU utilization (over 90% for 5m)|4m 59s|Update| |class: networkcomponent: cpuscope: performance| | |[2023-03-21 01:15:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30242452]| | |Warning|[2023-03-21 01:20:58|http://10.0.6.152/tr_events.php?triggerid=81155&eventid=30242452]|RESOLVED| |SDS6_JL7|#1: High CPU utilization (over 90% for 5m)|5m|Update| |class: networkcomponent: cpuscope: performance|
Expected: Before upgrading to Zabbix Server 6.4, I was using version 6.2, and during several months of usage, this issue did not occur frequently. Please investigate this issue further, as sending more than 500 SNMP packets per second to a device for several hours is abnormal.
|
| Comments |
| Comment by Edgar Akhmetshin [ 2023 Mar 24 ] |
|

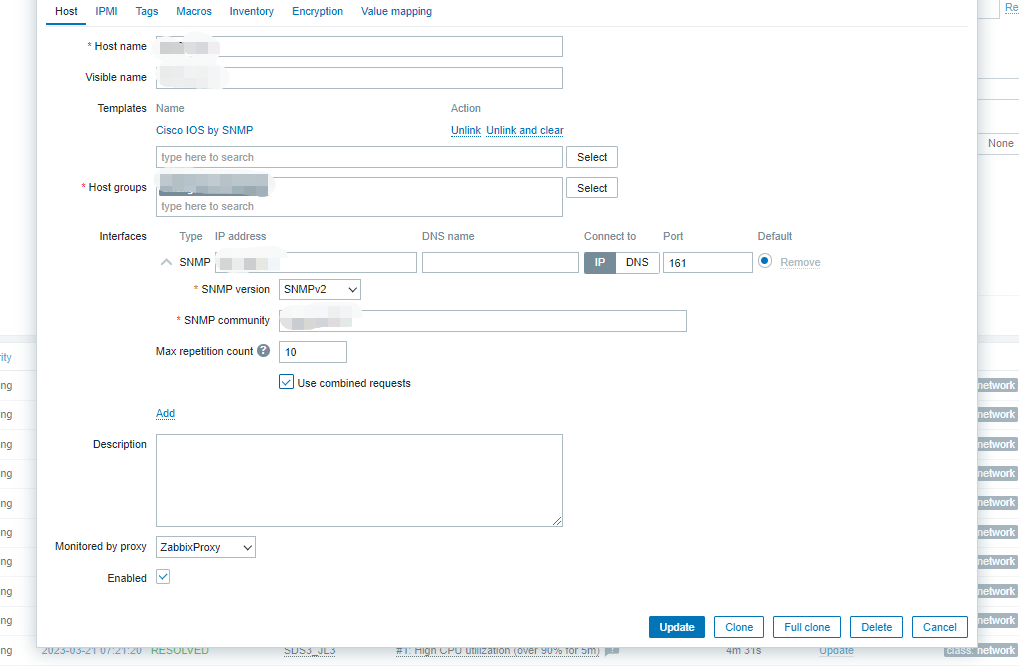

Hello Boqian, Could you please provide logs for the period of time of the "SNMP" flood. Also do you use bulk requests? And attach the used templates to the issue. Regards, |
| Comment by Boqian Zhang [ 2023 Mar 24 ] |
|
Hi
here is device log [^cisco icmp.yaml]cisco snmp.yaml When SNMP flooding occurs, devices usually do not have SNMP-related logs, but by using the command to check the SNMP status on the device, such as the input packet count, it is observed that it is increasing at a rate of more than 500 per second. Mar 10 2023 23:14:39.226 CST: SNMP: Packet sent via UDP to 10.0.3.156 Mar 10 2023 23:14:39.335 CST: SNMP: Packet received via UDP from 10.0.3.155 on Vlan186 Mar 10 2023 23:14:39.335 CST: SNMP: Get request, reqid 791294109, errstat 0, erridx 0 ciscoMemoryPoolEntry.6.2 = NULL TYPE/VALUE ifOperStatus.10101 = NULL TYPE/VALUE ifOperStatus.10109 = NULL TYPE/VALUE ifOperStatus.10127 = NULL TYPE/VALUE ifOperStatus.10108 = NULL TYPE/VALUE ifOperStatus.10123 = NULL TYPE/VALUE ifOperStatus.10104 = NULL TYPE/VALUE sysUpTime.0 = NULL TYPE/VALUE ciscoMemoryPoolEntry.5.2 = NULL TYPE/VALUE ifOperStatus.10122 = NULL TYPE/VALUE ifOperStatus.10110 = NULL TYPE/VALUE ifOperStatus.10128 = NULL TYPE/VALUE ifOperStatus.10117 = NULL TYPE/VALUE ifOperStatus.10107 = NULL TYPE/VALUE ifOperStatus.10114 = NULL TYPE/VALUE sysUpTime.0 = NULL TYPE/VALUE ifOperStatus.5001 = NULL TYPE/VALUE ifOperStatus.10103 = NULL TYPE/VALUE ifOperStatus.10102 = NULL TYPE/VALUE ifOperStatus.186 = NULL TYPE/VALUE ifOperStatus.10115 = NULL TYPE/VALUE ifOperStatus.10116 = NULL TYPE/VALUE ifOperStatus.10121 = NULL TYPE/VALUE ifOperStatus.10105 = NULL TYPE/VALUE ifOperStatus.10125 = NULL TYPE/VALUE ifOperStatus.10120 = NULL TYPE/VALUE ciscoMemoryPoolEntry.5.1 = NULL TYPE/VALUE ifOperStatus.10201 = NULL TYPE/VALUE ifOperStatus.10111 = NULL TYPE/VALUE ifOperStatus.10112 = NULL TYPE/VALUE ifOperStatus.10124 = NULL TYPE/VALUE ifOperStatus.10126 = NULL TYPE/VALUE ifOperStatus.10106 = NULL TYPE/VALUE ciscoMemoryPoolEntry.5.16 = NULL TYPE/VALUE ifOperStatus.10113 = NULL TYPE/VALUE ifOperStatus.10119 = NULL TYPE/VALUE ciscoMemoryPoolEntry.6.1 = NULL TYPE/VALUE ifOperStatus.10118 = NULL TYPE/VALUE ifOperStatus.10202 = NULL TYPE/VALUE ciscoMemoryPoolEntry.6.16 = NULL TYPE/VALUE Mar 10 2023 23:14:39.444 CST: SNMP: Response, reqid 791294109, errstat 0, erridx 0 ciscoMemoryPoolEntry.6.2 = 11090964 ifOperStatus.10101 = 1 ifOperStatus.10109 = 2 ifOperStatus.10127 = 2 ifOperStatus.10108 = 2 ifOperStatus.10123 = 2 ifOperStatus.10104 = 2 sysUpTime.0 = 96613736 ciscoMemoryPoolEntry.5.2 = 5686252 ifOperStatus.10122 = 2 ifOperStatus.10110 = 1 ifOperStatus.10128 = 2 ifOperStatus.10117 = 2 ifOperStatus.10107 = 2 ifOperStatus.10114 = 2 sysUpTime.0 = 96613736 ifOperStatus.5001 = 1 ifOperStatus.10103 = 1 ifOperStatus.10102 = 1 ifOperStatus.186 = 1 ifOperStatus.10115 = 1 ifOperStatus.10116 = 1 ifOperStatus.10121 = 2 ifOperStatus.10105 = 1 ifOperStatus.10125 = 2 ifOperStatus.10120 = 2 ciscoMemoryPoolEntry.5.1 = 27095008 ifOperStatus.10201 = 1 ifOperStatus.10111 = 2 ifOperStatus.10112 = 2 ifOperStatus.10124 = 2 ifOperStatus.10126 = 2 ifOperStatus.10106 = 1 ciscoMemoryPoolEntry.5.16 = 882628 ifOperStatus.10113 = 1 ifOperStatus.10119 = 2 ciscoMemoryPoolEntry.6.1 = 162971112 ifOperStatus.10118 = 2 ifOperStatus.10202 = 1 ciscoMemoryPoolEntry.6.16 = 3311676 Mar 10 2023 23:14:39.562 CST: SNMP: Packet sent via UDP to 10.0.3.155 Mar 10 2023 23:15:09.222 CST: SNMP: Packet received via UDP from 10.0.3.156 on Vlan186 Mar 10 2023 23:15:09.222 CST: SNMP: Get request, reqid 587574110, errstat 0, erridx 0 sysUpTime.0 = NULL TYPE/VALUE sysUpTime.0 = NULL TYPE/VALUE Mar 10 2023 23:15:09.222 CST: SNMP: Response, reqid 587574110, errstat 0, erridx 0 sysUpTime.0 = 96616714 sysUpTime.0 = 96616714 Mar 10 2023 23:15:09.239 CST: SNMP: Packet sent via UDP to 10.0.3.156 Mar 10 2023 23:15:09.373 CST: SNMP: Packet received via UDP from 10.0.3.155 on Vlan186 Mar 10 2023 23:15:09.382 CST: SNMP: Get request, reqid 262352101, errstat 0, erridx 0 sysUpTime.0 = NULL TYPE/VALUE sysUpTime.0 = NULL TYPE/VALUE Mar 10 2023 23:15:09.382 CST: SNMP: Response, reqid 262352101, errstat 0, erridx 0 sysUpTime.0 = 96616730 sysUpTime.0 = 96616730 Mar 10 2023 23:15:09.390 CST: SNMP: Packet sent via UDP to 10.0.3.155 JH4-186.102# JH4-186.102#
|
| Comment by Boqian Zhang [ 2023 Mar 24 ] |
|
|
| Comment by Boqian Zhang [ 2023 Mar 29 ] |
|
hi there here is some log from my cpu problem device Mar 29 2023 13:01:11.691 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.691 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.691 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.699 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.716 CST: SNMP: Get request, reqid 60254845, errstat 0, erridx 0 ifInErrors.10019 = NULL TYPE/VALUE Mar 29 2023 13:01:11.725 CST: SNMP: Response, reqid 60254845, errstat 0, erridx 0 ifInErrors.10019 = 0 Mar 29 2023 13:01:11.725 CST: SNMP: Get request, reqid 1765101790, errstat 0, erridx 0 ifInErrors.10020 = NULL TYPE/VALUE Mar 29 2023 13:01:11.725 CST: SNMP: Response, reqid 1765101790, errstat 0, erridx 0 ifInErrors.10020 = 0 Mar 29 2023 13:01:11.725 CST: SNMP: Get request, reqid 352170326, errstat 0, erridx 0 ifInErrors.10017 = NULL TYPE/VALUE Mar 29 2023 13:01:11.733 CST: SNMP: Response, reqid 352170326, errstat 0, erridx 0 ifInErrors.10017 = 0 Mar 29 2023 13:01:11.733 CST: SNMP: Get request, reqid 575657400, errstat 0, erridx 0 ifInErrors.10018 = NULL TYPE/VALUE Mar 29 2023 13:01:11.733 CST: SNMP: Response, reqid 575657400, errstat 0, erridx 0 ifInErrors.10018 = 0 Mar 29 2023 13:01:11.741 CST: SNMP: Get request, reqid 1597237403, errstat 0, erridx 0 ifInErrors.10039 = NULL TYPE/VALUE Mar 29 2023 13:01:11.741 CST: SNMP: Response, reqid 1597237403, errstat 0, erridx 0 ifInErrors.10039 = 0 Mar 29 2023 13:01:11.741 CST: SNMP: Get request, reqid 2020528938, errstat 0, erridx 0 ifInErrors.10040 = NULL TYPE/VALUE Mar 29 2023 13:01:11.750 CST: SNMP: Response, reqid 2020528938, errstat 0, erridx 0 ifInErrors.10040 = 0 Mar 29 2023 13:01:11.750 CST: SNMP: Get request, reqid 901873131, errstat 0, erridx 0 ifInErrors.10044 = NULL TYPE/VALUE Mar 29 2023 13:01:11.750 CST: SNMP: Response, reqid 901873131, errstat 0, erridx 0 ifInErrors.10044 = 0 Mar 29 2023 13:01:11.750 CST: SNMP: Get request, reqid 139542504, errstat 0, erridx 0 ifInErrors.10046 = NULL TYPE/VALUE Mar 29 2023 13:01:11.758 CST: SNMP: Response, reqid 139542504, errstat 0, erridx 0 ifInErrors.10046 = 0 Mar 29 2023 13:01:11.758 CST: SNMP: Get request, reqid 32801525, errstat 0, erridx 0 ifInErrors.10047 = NULL TYPE/VALUE Mar 29 2023 13:01:11.767 CST: SNMP: Response, reqid 32801525, errstat 0, erridx 0 ifInErrors.10047 = 0 Mar 29 2023 13:01:11.767 CST: SNMP: Get request, reqid 557401675, errstat 0, erridx 0 ifInErrors.10102 = NULL TYPE/VALUE Mar 29 2023 13:01:11.767 CST: SNMP: Response, reqid 557401675, errstat 0, erridx 0 ifInErrors.10102 = 0 Mar 29 2023 13:01:11.775 CST: SNMP: Get request, reqid 1354421029, errstat 0, erridx 0 ifHCInOctets.10012 = NULL TYPE/VALUE Mar 29 2023 13:01:11.775 CST: SNMP: Response, reqid 1354421029, errstat 0, erridx 0 ifHCInOctets.10012 = 0x4EC78058E Mar 29 2023 13:01:11.775 CST: SNMP: Get request, reqid 230201855, errstat 0, erridx 0 ifHCInOctets.10018 = NULL TYPE/VALUE Mar 29 2023 13:01:11.783 CST: SNMP: Response, reqid 230201855, errstat 0, erridx 0 ifHCInOctets.10018 = 0x11EEF1B1D Mar 29 2023 13:01:11.783 CST: SNMP: Get request, reqid 923710838, errstat 0, erridx 0 ifHCInOctets.10022 = NULL TYPE/VALUE Mar 29 2023 13:01:11.783 CST: SNMP: Response, reqid 923710838, errstat 0, erridx 0 ifHCInOctets.10022 = 0x000000000 Mar 29 2023 13:01:11.792 CST: SNMP: Get request, reqid 1840759367, errstat 0, erridx 0 ifHCInOctets.10025 = NULL TYPE/VALUE Mar 29 2023 13:01:11.792 CST: SNMP: Response, reqid 1840759367, errstat 0, erridx 0 ifHCInOctets.10025 = 0x000000000 Mar 29 2023 13:01:11.792 CST: SNMP: Get request, reqid 190723192, errstat 0, erridx 0 ifInErrors.10023 = NULL TYPE/VALUE Mar 29 2023 13:01:11.800 CST: SNMP: Response, reqid 190723192, errstat 0, erridx 0 ifInErrors.10023 = 0 Mar 29 2023 13:01:11.800 CST: SNMP: Get request, reqid 625524983, errstat 0, erridx 0 ifInErrors.10036 = NULL TYPE/VALUE Mar 29 2023 13:01:11.800 CST: SNMP: Response, reqid 625524983, errstat 0, erridx 0 ifInErrors.10036 = 0 Mar 29 2023 13:01:11.809 CST: SNMP: Get request, reqid 741971852, errstat 0, erridx 0 ifInErrors.10041 = NULL TYPE/VALUE Mar 29 2023 13:01:11.809 CST: SNMP: Response, reqid 741971852, errstat 0, erridx 0 ifInErrors.10041 = 0 Mar 29 2023 13:01:11.809 CST: SNMP: Get request, reqid 1868688839, errstat 0, erridx 0 ifInErrors.10042 = NULL TYPE/VALUE Mar 29 2023 13:01:11.817 CST: SNMP: Response, reqid 1868688839, errstat 0, erridx 0 ifInErrors.10042 = 0 Mar 29 2023 13:01:11.817 CST: SNMP: Get request, reqid 1244698199, errstat 0, erridx 0 ifInErrors.10043 = NULL TYPE/VALUE Mar 29 2023 13:01:11.817 CST: SNMP: Response, reqid 1244698199, errstat 0, erridx 0 ifInErrors.10043 = 0 Mar 29 2023 13:01:11.825 CST: SNMP: Get request, reqid 479057684, errstat 0, erridx 0 ifHCInOctets.10001 = NULL TYPE/VALUE Mar 29 2023 13:01:11.825 CST: SNMP: Response, reqid 479057684, errstat 0, erridx 0 ifHCInOctets.10001 = 0x000000000 Mar 29 2023 13:01:11.834 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.834 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.842 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.850 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.850 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.850 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.850 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.850 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.850 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.850 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.8deb SDS3_JL10# undebug 59 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.859 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:11.867 CST: SNMP: Get request, reqid 1918025406, errstat 0, erridx 0 ifHCInOctets.10004 = NULL TYPE/VALUE Mar 29 2023 13:01:11.867 CST: SNMP: Response, reqid 1918025406, errstat 0, erridx 0 ifHCInOctets.10004 = 0x000000000 Mar 29 2023 13:01:11.876 CST: SNMP: Get request, reqid 1226892480, errstat 0, erridx 0 ifHCInOctets.10102 = NULL TYPE/VALUE Mar 29 2023 13:01:11.876 CST: SNMP: Response, reqid 1226892480, errstat 0, erridx 0 ifHCInOctets.10102 = 0x000000000 Mar 29 2023 13:01:11.876 CST: SNMP: Get request, reqid 924121451, errstat 0, erridx 0 ifHCInOctets.10040 = NULL TYPE/VALUE Mar 29 2023 13:01:11.884 CST: SNMP: Response, reqid 924121451, errstat 0, erridx 0 ifHCInOctets.10040 = 0x000000000 Mar 29 2023 13:01:11.884 CST: SNMP: Get request, reqid 1043514346, errstat 0, erridx 0 ifHCInOctets.10024 = NULL TYPE/VALUE Mar 29 2023 13:01:11.884 CST: SNMP: Response, reqid 1043514346, errstat 0, erridx 0 ifHCInOctets.10024 = 0x000000000 Mar 29 2023 13:01:11.892 CST: SNMP: Get request, reqid 1207260298, errstat 0, erridx 0 ifHCInOctets.10048 = NULL TYPE/VALUE Mar 29 2023 13:01:11.892 CST: SNMP: Response, reqid 1207260298, errstat 0, erridx 0 ifHCInOctets.10048 = 0x000000000 Mar 29 2023 13:01:11.892 CST: SNMP: Get request, reqid 1572169373, errstat 0, erridx 0 ifHCInOctets.10017 = NULL TYPE/VALUE Mar 29 2023 13:01:11.901 CST: SNMP: Response, reqid 1572169373, errstat 0, erridx 0 ifHCInOctets.10017 = 0x000000000 Mar 29 2023 13:01:11.901 CST: SNMP: Get request, reqid 590179905, errstat 0, erridx 0 ifHCInOctets.10014 = NULL TYPE/VALUE Mar 29 2023 13:01:11.901 CST: SNMP: Response, reqid 590179905, errstat 0, erridx 0 ifHCInOctets.10014 = 0x11D04F0432 Mar 29 2023 13:01:11.901 CST: SNMP: Get request, reqid 1642964347, errstat 0, erridx 0 ifHCInOctets.10047 = NULL TYPE/VALUE Mar 29 2023 13:01:11.909 CST: SNMP: Response, reqid 1642964347, errstat 0, erridx 0 ifHCInOctets.10047 = 0x000000000 Mar 29 2023 13:01:11.909 CST: SNMP: Get request, reqid 1049711413, errstat 0, erridx 0 ifInErrors.10038 = NULL TYPE/VALUE Mar 29 2023 13:01:11.909 CST: SNMP: Response, reqid 1049711413, errstat 0, erridx 0 ifInErrors.10038 = 2 Mar 29 2023 13:01:11.918 CST: SNMP: Get request, reqid 37618689, errstat 0, erridx 0 ifInErrors.10037 = NULL TYPE/VALUE Mar 29 2023 13:01:11.918 CST: SNMP: Response, reqid 37618689, errstat 0, erridx 0 ifInErrors.10037 = 10327 Mar 29 2023 13:01:11.918 CST: SNMP: Get request, reqid 1051405274, errstat 0, erridx 0 ifInErrors.10045 = NULL TYPE/VALUE Mar 29 2023 13:01:11.926 CST: SNMP: Response, reqid 1051405274, errstat 0, erridx 0 ifInErrors.10045 = 0 Mar 29 2023 13:01:11.926 CST: SNMP: Get request, reqid 783416774, errstat 0, erridx 0 ifInErrors.10048 = NULL TYPE/VALUE Mar 29 2023 13:01:11.926 CST: SNMP: Response, reqid 783416774, errstat 0, erridx 0 ifInErrors.10048 = 0 Mar 29 2023 13:01:11.934 CST: SNMP: Get request, reqid 1051258325, errstat 0, erridx 0 ifInErrors.10101 = NULL TYPE/VALUE Mar 29 2023 13:01:11.934 CST: SNMP: Response, reqid 1051258325, errstat 0, erridx 0 ifInErrors.10101 = 0 Mar 29 2023 13:01:11.934 CST: SNMP: Get request, reqid 461598588, errstat 0, erridx 0 ifInErrors.148 = NULL TYPE/VALUE Mar 29 2023 13:01:11.943 CST: SNMP: Response, reqid 461598588, errstat 0, erridx 0 ifInErrors.148 = 0 Mar 29 2023 13:01:11.943 CST: SNMP: Get request, reqid 747178268, errstat 0, erridx 0 ifHCInOctets.10002 = NULL TYPE/VALUE Mar 29 2023 13:01:11.943 CST: SNMP: Response, reqid 747178268, errstat 0, erridx 0 ifHCInOctets.10002 = 0x000000000 Mar 29 2023 13:01:11.943 CST: SNMP: Get request, reqid 2097714446, errstat 0, erridx 0 ifHCInOctets.10005 = NULL TYPE/VALUE Mar 29 2023 13:01:11.951 CST: SNMP: Response, reqid 2097714446, errstat 0, erridx 0 ifHCInOctets.10005 = 0x000000000 Mar 29 2023 13:01:11.951 CST: SNMP: Get request, reqid 140914047, errstat 0, erridx 0 ifHCInOctets.10003 = NULL TYPE/VALUE Mar 29 2023 13:01:11.951 CST: SNMP: Response, reqid 140914047, errstat 0, erridx 0 ifHCInOctets.10003 = 0x000000000 Mar 29 2023 13:01:11.960 CST: SNMP: Get request, reqid 828177256, errstat 0, erridx 0 ifHCInOctets.10006 = NULL TYPE/VALUE Mar 29 2023 13:01:11.960 CST: SNMP: Response, reqid 828177256, errstat 0, erridx 0 ifHCInOctets.10006 = 0x011ED2045 Mar 29 2023 13:01:11.960 CST: SNMP: Get request, reqid 565886771, errstat 0, erridx 0 ifHCInOctets.10007 = NULL TYPE/VALUE Mar 29 2023 13:01:11.968 CST: SNMP: Response, reqid 565886771, errstat 0, erridx 0 ifHCInOctets.10007 = 0x0BC3E82C9 Mar 29 2023 13:01:11.968 CST: SNMP: Get request, reqid 2033986900, errstat 0, erridx 0 ifHCInOctets.10019 = NULL TYPE/VALUE Mar 29 2023 13:01:11.968 CST: SNMP: Response, reqid 2033986900, errstat 0, erridx 0 ifHCInOctets.10019 = 0x000045144 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.985 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:11.993 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.077 CST: SNMP: Get request, reqid 1779335581, errstat 0, erridx 0 ifHCInOctets.10015 = NULL TYPE/VALUE Mar 29 2023 13:01:12.077 CST: SNMP: Response, reqid 1779335581, errstat 0, erridx 0 ifHCInOctets.10015 = 0x000000000 Mar 29 2023 13:01:12.085 CST: SNMP: Get request, reqid 696934504, errstat 0, erridx 0 ifHCInOctets.10020 = NULL TYPE/VALUE Mar 29 2023 13:01:12.085 CST: SNMP: Response, reqid 696934504, errstat 0, erridx 0 ifHCInOctets.10020 = 0x000000000 Mar 29 2023 13:01:12.085 CST: SNMP: Get request, reqid 269054870, errstat 0, erridx 0 ifHCInOctets.10021 = NULL TYPE/VALUE Mar 29 2023 13:01:12.094 CST: SNMP: Response, reqid 269054870, errstat 0, erridx 0 ifHCInOctets.10021 = 0x000000000 Mar 29 2023 13:01:12.094 CST: SNMP: Get request, reqid 195163304, errstat 0, erridx 0 ifHCInOctets.10016 = NULL TYPE/VALUE Mar 29 2023 13:01:12.094 CST: SNMP: Response, reqid 195163304, errstat 0, erridx 0 ifHCInOctets.10016 = 0x000000000 Mar 29 2023 13:01:12.102 CST: SNMP: Get request, reqid 545696412, errstat 0, erridx 0 ifHCInOctets.10023 = NULL TYPE/VALUE Mar 29 2023 13:01:12.102 CST: SNMP: Response, reqid 545696412, errstat 0, erridx 0 ifHCInOctets.10023 = 0x000000000 Mar 29 2023 13:01:12.102 CST: SNMP: Get request, reqid 694916473, errstat 0, erridx 0 ifHCInOctets.10032 = NULL TYPE/VALUE Mar 29 2023 13:01:12.111 CST: SNMP: Response, reqid 694916473, errstat 0, erridx 0 ifHCInOctets.10032 = 0x489C73F00 Mar 29 2023 13:01:12.111 CST: SNMP: Get request, reqid 289829072, errstat 0, erridx 0 ifHCInOctets.10030 = NULL TYPE/VALUE Mar 29 2023 13:01:12.111 CST: SNMP: Response, reqid 289829072, errstat 0, erridx 0 ifHCInOctets.10030 = 0x361AA6C0A0 Mar 29 2023 13:01:12.111 CST: SNMP: Get request, reqid 1738113999, errstat 0, erridx 0 ifHCInOctets.10031 = NULL TYPE/VALUE Mar 29 2023 13:01:12.119 CST: SNMP: Response, reqid 1738113999, errstat 0, erridx 0 ifHCInOctets.10031 = 0x0683AB2F6 Mar 29 2023 13:01:12.119 CST: SNMP: Get request, reqid 1366986164, errstat 0, erridx 0 ifHCInOctets.10033 = NULL TYPE/VALUE Mar 29 2023 13:01:12.119 CST: SNMP: Response, reqid 1366986164, errstat 0, erridx 0 ifHCInOctets.10033 = 0x000000000 Mar 29 2023 13:01:12.127 CST: SNMP: Get request, reqid 1257418506, errstat 0, erridx 0 ifHCInOctets.10041 = NULL TYPE/VALUE Mar 29 2023 13:01:12.127 CST: SNMP: Response, reqid 1257418506, errstat 0, erridx 0 ifHCInOctets.10041 = 0x000000000 Mar 29 2023 13:01:12.127 CST: SNMP: Get request, reqid 270848827, errstat 0, erridx 0 ifHCInOctets.10101 = NULL TYPE/VALUE Mar 29 2023 13:01:12.136 CST: SNMP: Response, reqid 270848827, errstat 0, erridx 0 ifHCInOctets.10101 = 0x2167EBB34F0 Mar 29 2023 13:01:12.136 CST: SNMP: Get request, reqid 1729049229, errstat 0, erridx SDS3_JL10# undebug all0 ifOutErrors.10037 = NULL TYPE/VALUE Mar 29 2023 13:01:12.136 CST: SNMP: Response, reqid 1729049229, errstat 0, erridx 0 ifOutErrors.10037 = 0 Mar 29 2023 13:01:12.144 CST: SNMP: Get request, reqid 1955293916, errstat 0, erridx 0 ifOutErrors.10045 = NULL TYPE/VALUE Mar 29 2023 13:01:12.144 CST: SNMP: Response, reqid 1955293916, errstat 0, erridx 0 ifOutErrors.10045 = 0 Mar 29 2023 13:01:12.144 CST: SNMP: Get request, reqid 1054381899, errstat 0, erridx 0 ifOutErrors.10031 = NULL TYPE/VALUE Mar 29 2023 13:01:12.152 CST: SNMP: Response, reqid 1054381899, errstat 0, erridx 0 ifOutErrors.10031 = 0 Mar 29 2023 13:01:12.152 CST: SNMP: Get request, reqid 772371385, errstat 0, erridx 0 ifHCOutOctets.10012 = NULL TYPE/VALUE Mar 29 2023 13:01:12.152 CST: SNMP: Response, reqid 772371385, errstat 0, erridx 0 ifHCOutOctets.10012 = 0x36088C0B32 Mar 29 2023 13:01:12.152 CST: SNMP: Get request, reqid 866840445, errstat 0, erridx 0 ifOutErrors.10029 = NULL TYPE/VALUE Mar 29 2023 13:01:12.161 CST: SNMP: Response, reqid 866840445, errstat 0, erridx 0 ifOutErrors.10029 = 0 Mar 29 2023 13:01:12.161 CST: SNMP: Get request, reqid 672203360, errstat 0, erridx 0 ifOutErrors.10033 = NULL TYPE/VALUE Mar 29 2023 13:01:12.161 CST: SNMP: Response, reqid 672203360, errstat 0, erridx 0 ifOutErrors.10033 = 0 Mar 29 2023 13:01:12.169 CST: SNMP: Get request, reqid 42929498, errstat 0, erridx 0 ifOutErrors.10035 = NULL TYPE/VALUE Mar 29 2023 13:01:12.169 CST: SNMP: Response, reqid 42929498, errstat 0, erridx 0 ifOutErrors.10035 = 0 Mar 29 2023 13:01:12.169 CST: SNMP: Get request, reqid 1596770658, errstat 0, erridx 0 ifOutErrors.10039 = NULL TYPE/VALUE Mar 29 2023 13:01:12.178 CST: SNMP: Response, reqid 1596770658, errstat 0, erridx 0 ifOutErrors.10039 = 0 Mar 29 2023 13:01:12.178 CST: SNMP: Get request, reqid 1491470693, errstat 0, erridx 0 ifOutErrors.10041 = NULL TYPE/VALUE Mar 29 2023 13:01:12.178 CST: SNMP: Response, reqid 1491470693, errstat 0, erridx 0 ifOutErrors.10041 = 0 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.194 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.203 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.203 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.203 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.203 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.203 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.203 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.203 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:12.203 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:12.203 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:12.211 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:12.211 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:12.211 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:12.211 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:12.211 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:12.211 CST: SNMP: Packet received via UDP from 10.0.6.151 on Vlan148 Mar 29 2023 13:01:12.211 CST: SNMP: Get request, reqid 941137666, errstat 0, erridx 0 ifOutErrors.10043 = NULL TYPE/VALUE Mar 29 2023 13:01:12.220 CST: SNMP: Response, reqid 941137666, errstat 0, erridx 0 ifOutErrors.10043 = 0 Mar 29 2023 13:01:12.220 CST: SNMP: Get request, reqid 1323516152, errstat 0, erridx 0 ifOutErrors.10101 = NULL TYPE/VALUE Mar 29 2023 13:01:12.220 CST: SNMP: Response, reqid 1323516152, errstat 0, erridx 0 ifOutErrors.10101 = 0 Mar 29 2023 13:01:12.228 CST: SNMP: Get request, reqid 86764750, errstat 0, erridx 0 ifHCOutOctets.10004 = NULL TYPE/VALUE Mar 29 2023 13:01:12.228 CST: SNMP: Response, reqid 86764750, errstat 0, erridx 0 ifHCOutOctets.10004 = 0x000000000 Mar 29 2023 13:01:12.228 CST: SNMP: Get request, reqid 319686535, errstat 0, erridx 0 ifHCOutOctets.10008 = NULL TYPE/VALUE Mar 29 2023 13:01:12.228 CST: SNMP: Response, reqid 319686535, errstat 0, erridx 0 ifHCOutOctets.10008 = 0x16109C5C61 Mar 29 2023 13:01:12.236 CST: SNMP: Get request, reqid 917488295, errstat 0, erridx 0 ifHCOutOctets.10022 = NULL TYPE/VALUE Mar 29 2023 13:01:12.236 CST: SNMP: Response, reqid 917488295, errstat 0, erridx 0 ifHCOutOctets.10022 = 0x000000000 Mar 29 2023 13:01:12.236 CST: SNMP: Get request, reqid 2056450114, errstat 0, erridx 0 ifHCOutOctets.10026 = NULL TYPE/VALUE Mar 29 2023 13:01:12.245 CST: SNMP: Response, reqid 2056450114, errstat 0, erridx 0 ifHCOutOctets.10026 = 0x000000000 Mar 29 2023 13:01:12.245 CST: SNMP: Get request, reqid 1865876157, errstat 0, erridx 0 ifHCOutOctets.10028 = NULL TYPE/VALUE Mar 29 2023 13:01:12.245 CST: SNMP: Response, reqid 1865876157, errstat 0, erridx 0 ifHCOutOctets.10028 = 0x000000000 Mar 29 2023 13:01:12.253 CST: SNMP: Get request, reqid 830902488, errstat 0, erridx 0 ifOutErrors.10047 = NULL TYPE/VALUE Mar 29 2023 13:01:12.253 CST: SNMP: Response, reqid 830902488, errstat 0, erridx 0 ifOutErrors.10047 = 0 Mar 29 2023 13:01:12.253 CST: SNMP: Get request, reqid 753228289, errstat 0, erridx 0 ifOutErrors.148 = NULL TYPE/VALUE Mar 29 2023 13:01:12.262 CST: SNMP: Response, reqid 753228289, errstat 0, erridx 0 ifOutErrors.148 = 0 Mar 29 2023 13:01:12.262 CST: SNMP: Get request, reqid 100551367, errstat 0, erridx 0 ifHCOutOctets.10002 = NULL TYPE/VALUE Mar 29 2023 13:01:12.262 CST: SNMP: Response, reqid 100551367, errstat 0, erridx 0 ifHCOutOctets.10002 = 0x000000000 Mar 29 2023 13:01:12.270 CST: SNMP: Get request, reqid 1708411714, errstat 0, erridx 0 ifHCOutOctets.10006 = NULL TYPE/VALUE Mar 29 2023 13:01:12.270 CST: SNMP: Response, reqid 1708411714, errstat 0, erridx 0 ifHCOutOctets.10006 = 0x03E040893 Mar 29 2023 13:01:12.270 CST: SNMP: Get request, reqid 339255214, errstat 0, erridx 0 ifHCOutOctets.10010 = NULL TYPE/VALUE Mar 29 2023 13:01:12.278 CST: SNMP: Response, reqid 339255214, errstat 0, erridx 0 ifHCOutOctets.10010 = 0x71D93CEC2 Mar 29 2023 13:01:12.278 CST: SNMP: Get request, reqid 291206407, errstat 0, erridx 0 ifHCOutOctets.10014 = NULL TYPE/VALUE Mar 29 2023 13:01:12.278 CST: SNMP: Response, reqid 291206407, errstat 0, erridx 0 ifHCOutOctets.10014 = 0x14789EF0DE Mar 29 2023 13:01:12.287 CST: SNMP: Get request, reqid 796345940, errstat 0, erridx 0 ifHCOutOctets.10016 = NULL TYPE/VALUE Mar 29 2023 13:01:12.287 CST: SNMP: Response, reqid 796345940, errstat 0, erridx 0 ifHCOutOctets.10016 = 0x000000000 Mar 29 2023 13:01:12.287 CST: SNMP: Get request, reqid 1683407951, errstat 0, erridx 0 ifHCOutOctets.10018 = NULL TYPE/VALUE Mar 29 2023 13:01:12.295 CST: SNMP: Response, reqid 1683407951, errstat 0, erridx 0 ifHCOutOctets.10018 = 0x08FB65501 Mar 29 2023 13:01:12.295 CST: SNMP: Get request, reqid 2118833043, errstat 0, erridx 0 ifHCOutOctets.10020 = NULL TYPE/VALUE Mar 29 2023 13:01:12.295 CST: SNMP: Response, reqid 2118833043, errstat 0, erridx 0 ifHCOutOctets.10020 = 0x000000000 Mar 29 2023 13:01:12.295 CST: SNMP: Get request, reqid 1334349905, errstat 0, erridx 0 ifHCOutOctets.10024 = NULL TYPE/VALUE Mar 29 2023 13:01:12.303 CST: SNMP: Response, reqid 1334349905, errstat 0, erridx 0 ifHCOutOctets.10024 = 0x000000000 Mar 29 2023 13:01:12.303 CST: SNMP: Get request, reqid 1501352656, errstat 0, erridx 0 ifHCOutOctets.10030 = NULL TYPE/VALUE Mar 29 2023 13:01:12.303 CST: SNMP: Response, reqid 1501352656, errstat 0, erridx 0 ifHCOutOctets.10030 = 0x3ABC2EA03B Mar 29 2023 13:01:12.312 CST: SNMP: Get request, reqid 1871197461, errstat 0, erridx 0 ifHCOutOctets.10032 = NULL TYPE/VALUE Mar 29 2023 13:01:12.312 CST: SNMP: Response, reqid 1871197461, errstat 0, erridx 0 ifHCOutOctets.10032 = 0x1A0175945D Mar 29 2023 13:01:12.312 CST: SNMP: Get request, reqid 462441940, errstat 0, erridx 0 ifHCOutOctets.10034 = NULL TYPE/VALUE Mar 29 2023 13:01:12.320 CST: SNMP: Response, reqid 462441940, errstat 0, erridx 0 ifHCOutOctets.10034 = 0x000000000 Mar 29 2023 13:01:12.329 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.329 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.329 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.329 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.329 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.329 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.329 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.337 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar Mar 29 2023 13:01:12.337 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.345 CST: SNMP: Packet sent via UDP to 10.0.6.151 Mar 29 2023 13:01:12.345 CST: SNMP: Packet sent via UDP to 10.0.6.151 |
| Comment by Edgar Akhmetshin [ 2023 Apr 04 ] |
|
The details provided shows common SNMP requests, since you are using combined requests with old style template and not bulk.
Reduce amount of metrics, or rework Cisco IOS template and try to use new SNMP bulk implementation in 6.4 (
Device performance issues should be addressed to the Cisco itself, since hardware is not able to process monitoring requests. Please be advised that this section of the tracker is for bug reports only. The case you have submitted can not be qualified as one, so please reach out to [email protected] for commercial support (https://zabbix.com/support) or consultancy services. Alternatively, you can also use our IRC channel or community forum (https://www.zabbix.com/forum) for assistance. With that said, we are closing this ticket. Thank you for understanding. Regards, |
| Comment by Boqian Zhang [ 2023 Apr 14 ] |
|
6.2 was upgraded to 6.4. Due to changes in snmp walk, there is a certain probability of snmp flood device causing high CPU usage. Currently, my solution is to disable the combination query, replace the cisco template with the 6.4 version, unlink all switches from the template, remove all monitoring items, and make the machine have no template and monitoring parameters. Then, re-link the 6.4 cisco IOS template. Currently, it seems that this operation can solve the problem of high CPU caused by snmp flood. However, this will cause all historical traffic charts to disappear. I can only create another virtual machine to restore the database and store these charts. After a few months, when the data is no longer needed, the virtual machine can be deleted. |
| Comment by Boqian Zhang [ 2023 Apr 14 ] |
|
please check my last commit |
| Comment by Edgar Akhmetshin [ 2023 Jun 27 ] |
|
Combined (previously named 'bulk') requests are not changed in terms of architecture in 6.4. If device is not able to process SNMP metrics - you can rebuild the package with decreased value for the MAX_SNMP_ITEMS variable. For example 32 instead of 128 used by default. Closing since poor device performance doesn't related to the Zabbix code, code is the same for combined requests as before (6.2-6.4).
|
