Uploaded image for project: 'ZABBIX BUGS AND ISSUES'
  1. ZABBIX BUGS AND ISSUES
  2. ZBX-16162

Draw Graph line complete when Discarding values with Heartbeat

    XMLWordPrintable

    Details

    • Team:
      Team B
    • Sprint:
      Sprint 56 (Sep 2019), Sprint 55 (Aug 2019), Sprint 53 (Jun 2019), Sprint 54 (Jul 2019), Sprint 57 (Oct 2019), Sprint 58 (Nov 2019), Sprint 59 (Dec 2019), Sprint 60 (Jan 2020), Sprint 61 (Feb 2020), Sprint 62 (Mar 2020), Sprint 63 (Apr 2020), Sprint 64 (May 2020)
    • Story Points:
      1

      Description

      Steps to reproduce:

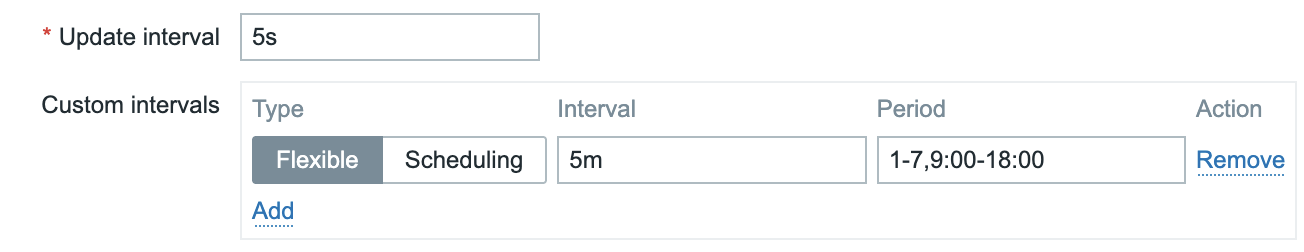

      1. Create a new Item with an uptade interval ov 1m
      2. Add a Preprocessing step "Discard with Heartbeat" and set it to 1h
      3. Wait a for some data to be collected (2-3h in this example)

      Result:

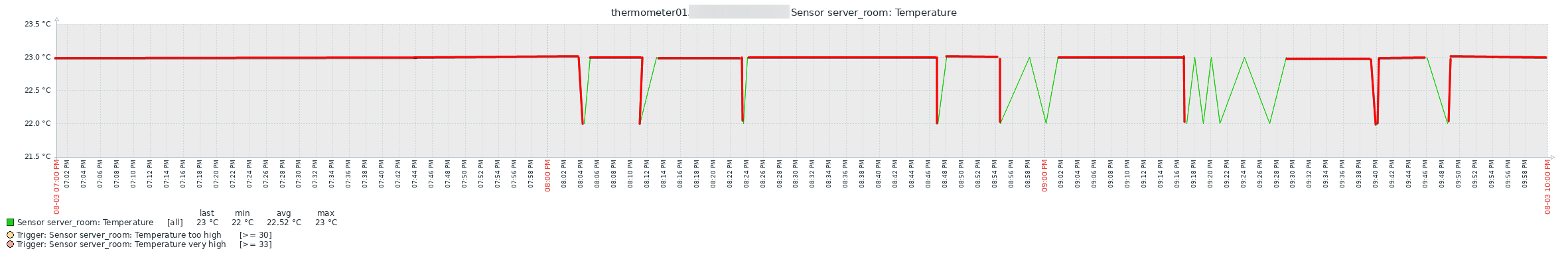

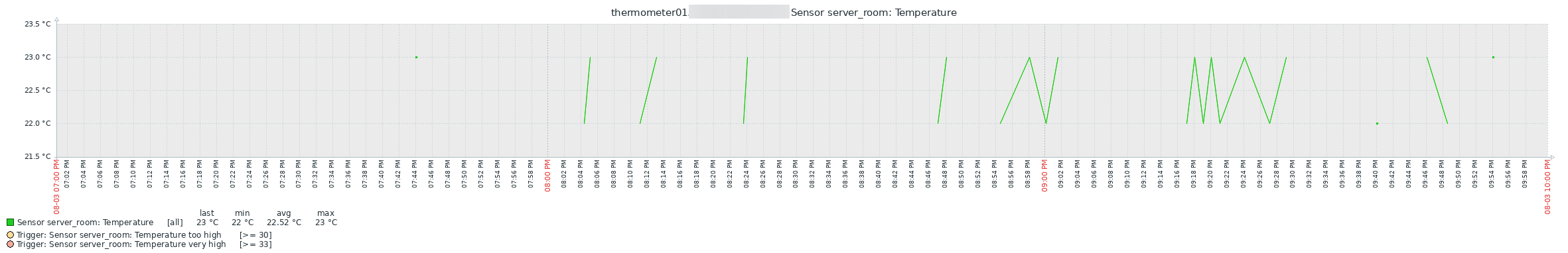

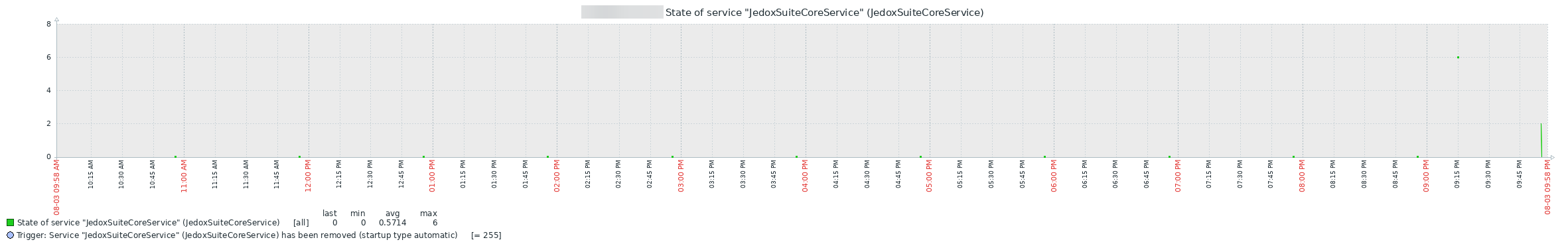

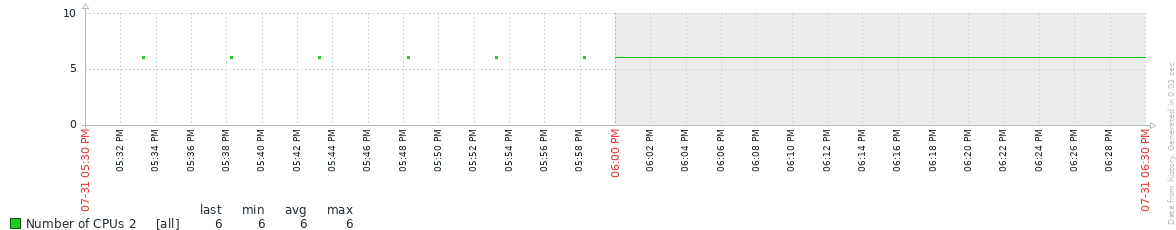

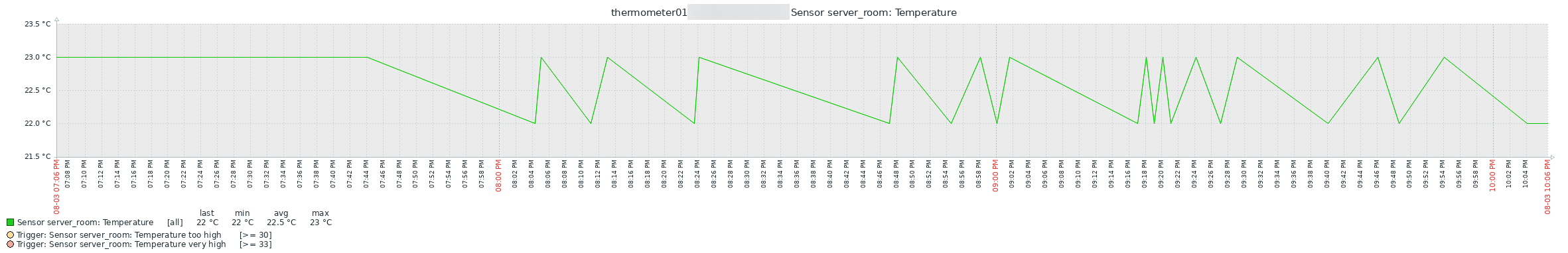

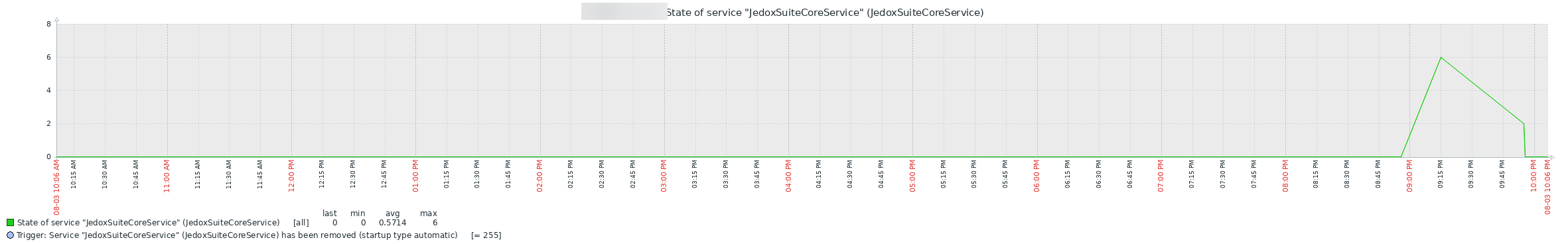

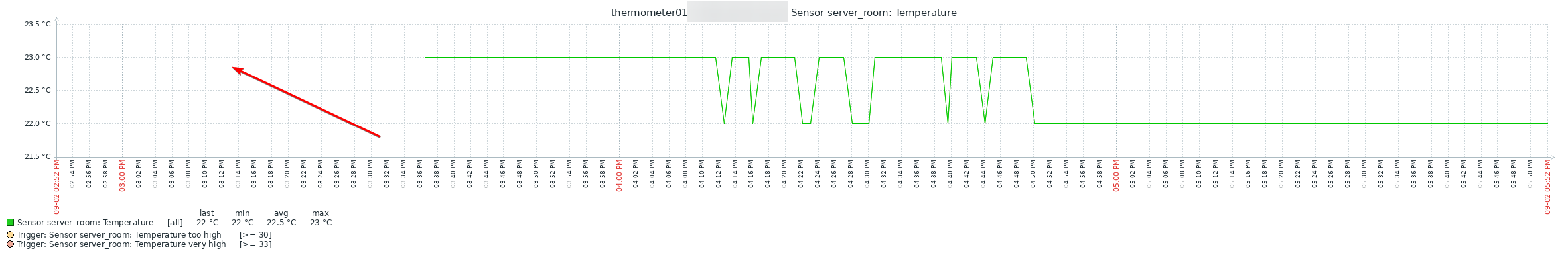

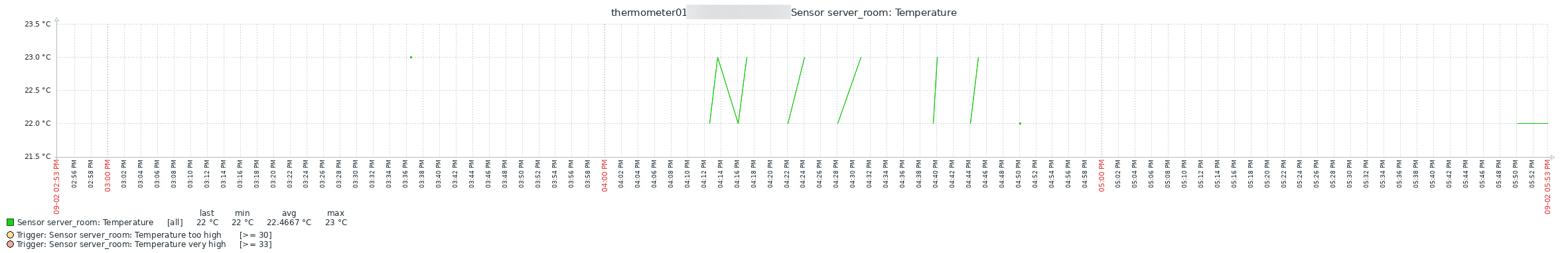

      See screenshot...
      The result looks counter intuitive, as you think the values might not be fetched
      Expected:
      Connecting the dots if the "Discard .*" Preprocessing step is added as we KNOW the values have been there.

      May be dont draw the lines if the connection was really dropped, but Idk if those stati are somewhere visible to the Item when drawing a graph.

        Attachments

        1. 2019-12-13-130822_1882x306_scrot.png
          31 kB
        2. 2019-12-13-130925_1884x535_scrot.png
          55 kB
        3. 21_1.png
          26 kB
        4. 21_2.png
          26 kB
        5. classic_graph.png
          19 kB
        6. classic.png
          27 kB
        7. constant_value_graph.gif
          3.28 MB
        8. data_point_exists.png
          24 kB
        9. data_point_missing.png
          25 kB
        10. dots_in_draphs.gif
          2.33 MB
        11. dots_in_graphs_2.gif
          5.50 MB
        12. future_data_on_graph.gif
          2.79 MB
        13. g1.png
          103 kB
        14. graph_diff.png
          32 kB
        15. graph_preview.gif
          2.71 MB
        16. heartbead_gaps.png
          22 kB
        17. hover.gif
          2.99 MB
        18. lines.png
          86 kB
        19. misleading_line.gif
          2.63 MB
        20. morse_code.png
          24 kB
        21. points.png
          89 kB
        22. Screenshot_20190523_133420.png
          24 kB
        23. trends.png
          48 kB
        24. unconnected.png
          54 kB
        25. zabbix_graph_bug1_ed.jpg
          60 kB
