Please check that Zabbix server running under zabbix user has knowledge about custom curl library. For example add Script with libtree execution for Zabbix server binary and execute it from web-interface

Unfortunately we still decide on cURL library features in the compilation time but this is planned to be changed in 7.0: ZBXNEXT-3623

From your screenshots it looks like zabbix_server is using incorrect library. You might want to check out the workaround documented here: https://www.zabbix.com/documentation/6.4/en/manual/installation/known_issues/compilation_issues#library-in-a-non-standard-location

If not helping, you might want to try setting the LDFLAGS variable before the ./configure in the command line:

LDFLAGS="-Wl,--rpath=$(STAGING_INSTALL_PREFIX)/lib $(STAGING_INSTALL_PREFIX)/libcurl.so" ./configure [...]

Hello

Did what you asked, but didn't changed anything. But what I'm guessing, it's from 6.2, I didn't have the problem. The problem only occurred when I upgrade from 6.2.x to 6.4.1 and no change to 6.4.10.

Xavier

1). Wait, I've read carefully the description again and this is what I noticed:

the libcurl used by zabbix server seems to be the one on the target system and not the one compiled with the package

You know that if you are not compiling zabbix server statically (I see no --static flag) there is no chance the binary will contain the library from the build machine?

In fact, I see no ./configure command at all. Could you provide complete steps to reproduce the issue, with all the commands involved? And please try to keep them as simple as possible.

2). Also what does

curl-config --protocols

say?

3). Do you happen to have 2 curl libraries installed on the target systems?

1./ I don't want to have the binary inside as there is some links. My configure args :

./configure  --host=arm-unknown-linux-gnueabi

--build=i686-pc-linux

--prefix=/var/packages/zabbix/target

--enable-server

--enable-proxy

--enable-agent

--with-mysql=/spksrc/spksrc/spk/zabbix/work-armada38x-7.0/install/var/packages/zabbix/target/bin/mysql_config

--enable-ipv6

--with-net-snmp=/spksrc/spksrc/spk/zabbix/work-armada38x-7.0/install/var/packages/zabbix/target/bin/net-snmp-config

--with-ssh2=/spksrc/spksrc/spk/zabbix/work-armada38x-7.0/install/var/packages/zabbix/target

--with-libcurl=/spksrc/spksrc/spk/zabbix/work-armada38x-7.0/install/var/packages/zabbix/target/bin/curl-config

--with-libxml2=/spksrc/spksrc/spk/zabbix/work-armada38x-7.0/install/var/packages/zabbix/target/bin/xml2-config

--with-openssl=/spksrc/spksrc/spk/zabbix/work-armada38x-7.0/install/var/packages/zabbix/target

2./

/spksrc/spksrc/spk/zabbix/work-armada38x-7.0/install/var/packages/zabbix/target/bin/curl-config --protocols

DICT
FILE
FTP
FTPS
GOPHER
GOPHERS
HTTP
HTTPS
IMAP
IMAPS
MQTT
POP3
POP3S
RTSP
SMB
SMBS
SMTP
SMTPS
TELNET
TFTP

3./ I have the one on the system that I can't change on the one normally use by the zabbix binary as saying in my libtree

admin@nas_ds416j:/var/packages/zabbix/target/sbin$ libtree -p zabbix_server
zabbix_server
├── /var/packages/zabbix/target/lib/libcurl.so.4 [rpath]
│   ├── /var/packages/zabbix/target/lib/libssl.so.1.1 [rpath]
│   │   ├── /var/packages/zabbix/target/lib/libcrypto.so.1.1 [rpath]
│   │   │   └── /lib/libpthread.so.0 [default path]
│   │   └── /lib/libpthread.so.0 [default path]
│   ├── /var/packages/zabbix/target/lib/libcrypto.so.1.1 [rpath]
│   ├── /var/packages/zabbix/target/lib/libz.so [rpath]
│   └── /lib/libpthread.so.0 [default path]
├── /var/packages/zabbix/target/lib/libevent_pthreads-2.1.so.7 [rpath]
│   └── /lib/libpthread.so.0 [default path]
├── /var/packages/zabbix/target/lib/libevent-2.1.so.7 [rpath]
│   └── /lib/libpthread.so.0 [default path]
├── /var/packages/zabbix/target/lib/libz.so [rpath]
├── /var/packages/zabbix/target/lib/libssh2.so.1 [rpath]
│   ├── /var/packages/zabbix/target/lib/libssl.so.1.1 [rpath]
│   ├── /var/packages/zabbix/target/lib/libz.so [rpath]
│   └── /var/packages/zabbix/target/lib/libcrypto.so.1.1 [rpath]
├── /var/packages/zabbix/target/lib/libxml2.so.2 [rpath]
│   └── /var/packages/zabbix/target/lib/libz.so [rpath]
├── /var/packages/zabbix/target/lib/libmysqlclient.so.18 [rpath]
│   ├── /var/packages/zabbix/target/lib/libssl.so.1.1 [rpath]
│   ├── /var/packages/zabbix/target/lib/libcrypto.so.1.1 [rpath]
│   └── /lib/libpthread.so.0 [default path]
├── /var/packages/zabbix/target/lib/libcrypto.so.1.1 [rpath]
├── /var/packages/zabbix/target/lib/libssl.so.1.1 [rpath]
├── /var/packages/zabbix/target/lib/libpcre.so.1 [rpath]
├── /lib/libresolv.so.2 [default path]
└── /lib/libpthread.so.0 [default path]

4./ I can assume that in my previous version 6.2.1, the same configure and lib curl, the problem didn't occurred. So I can propose to use the latest 6.2.9, and verify that the problem was not there.

Xavier

Can you run try the following. When building Zabbix, run your./configure with the following prefix:

LDFLAGS="-Wl,--rpath=/spksrc/spksrc/spk/zabbix/work-armada38x-7.0/install/var/packages/zabbix/target/lib /spksrc/spksrc/spk/zabbix/work-armada38x-7.0/install/var/packages/zabbix/target/libcurl.so" ./configure --host=[...]

When when you get your zabbix_server built run libtree one more time:

libtree -p zabbix_server | grep curl

Hello

I have an other input.

I retry from when it was working.

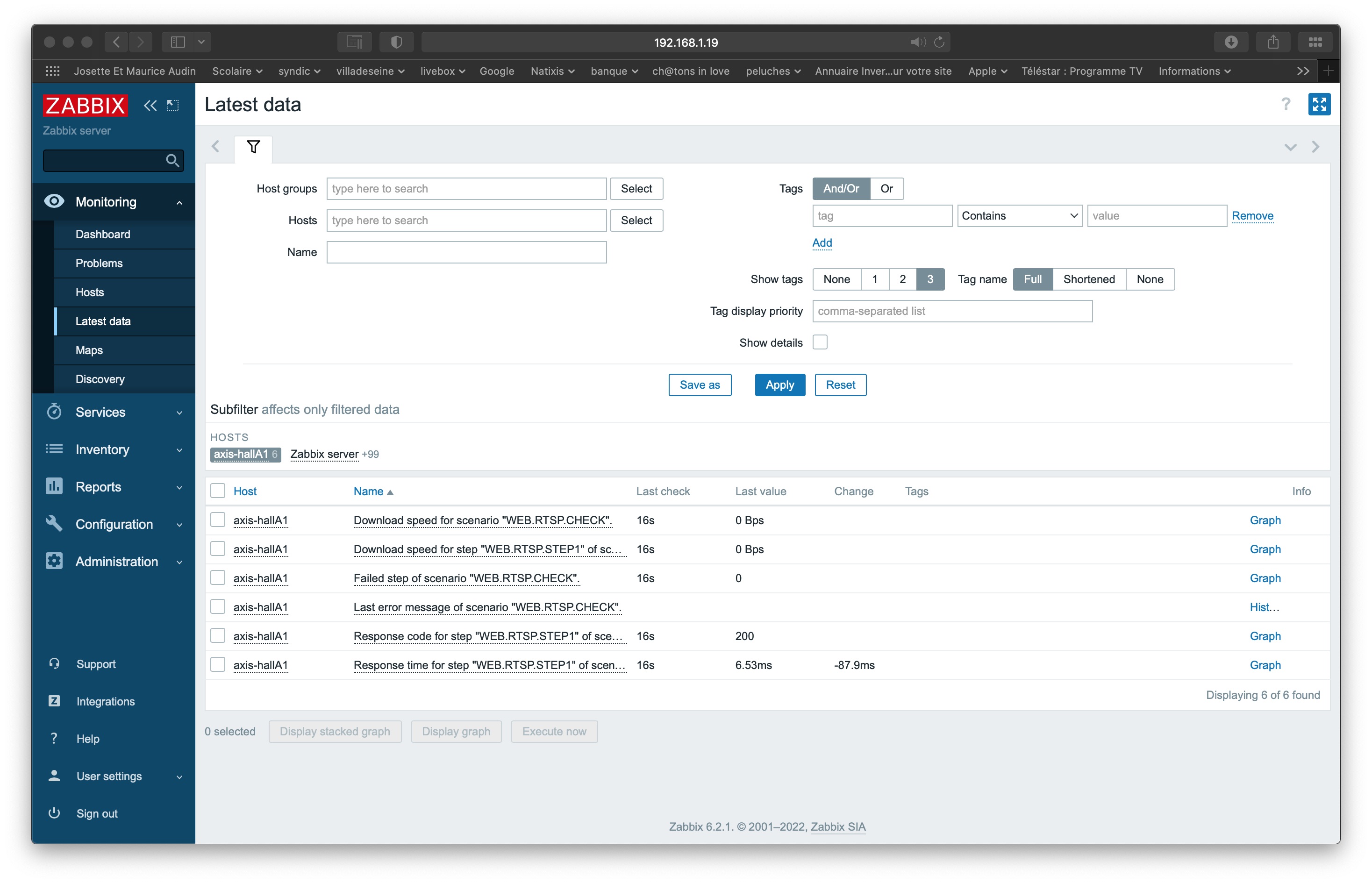

in 6.2.1 with exactly the same configure, same lib curl version, it's working as you can see on the screen shot for the web scenario.

In 6.2.9, it's not working. So I will update from 6.2.1 to 6.2.9 for each zabbix version to discover when the zabbix version will not work.

I will be on vacations next week, so I let you know when I will be able to do that.

Thanks

Xavier

Hello

FYI

I'm currently upgrading from

6.2.1 to 6.2.3 => OK

6.2.3 to 6.2.5 => OK

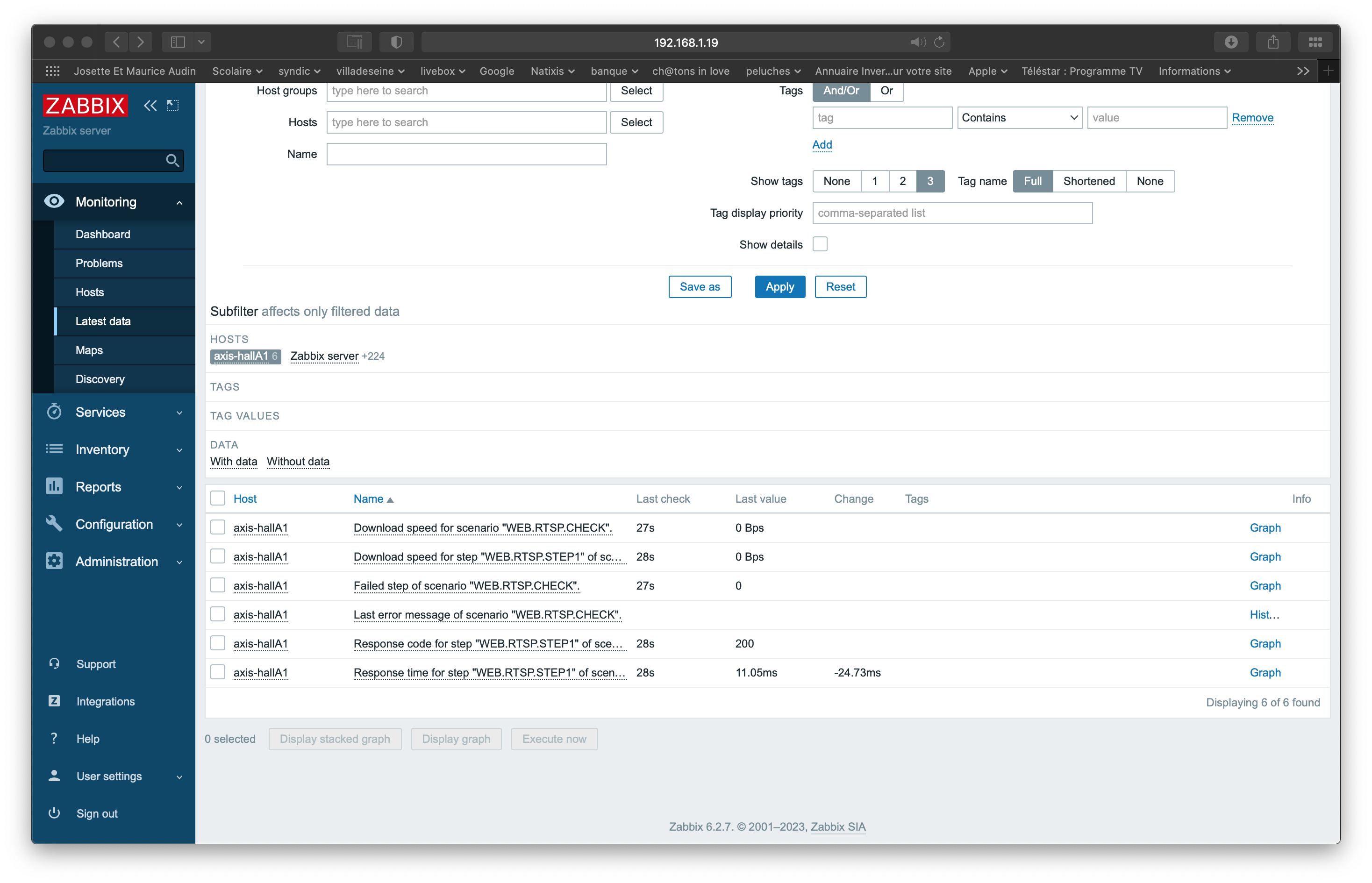

Upgrade 6.2.5 to 6.2.7 => OK

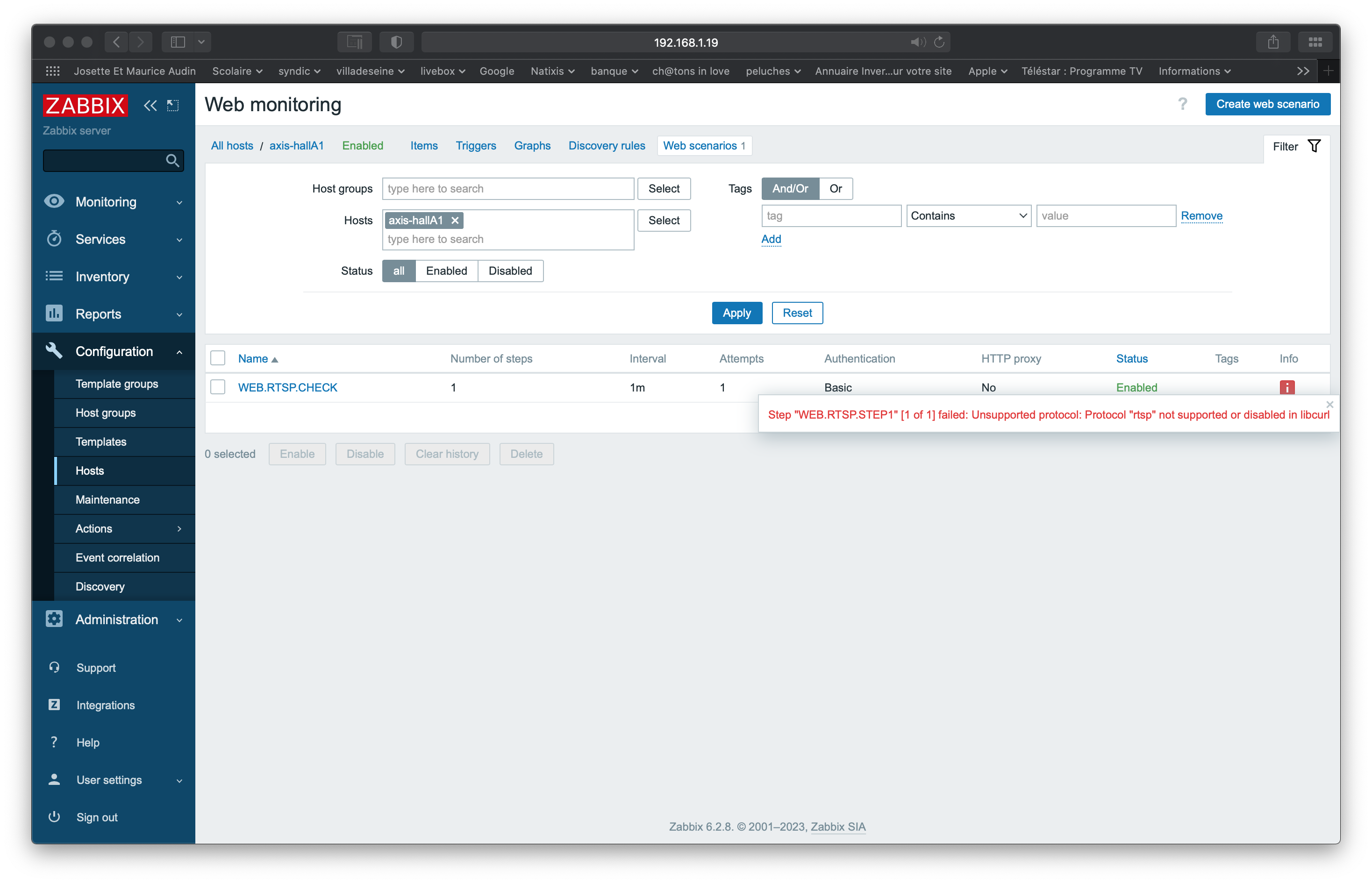

Upgrade 6.2.7 to 6.2.8 => KO

So, the problem occurred  in 6.2.8 release and it's present from there to 6.4.8,

In 6.2.8 release, I'm seeing some fixes relative to cURL. Perhaps something to have a look on it ?

Thanks

Xavier

Thanks for you detailed report!

For security reasons we dropped protocols other than "http" and "https" in Web Monitoring, this indeed was introduced in 6.2.8: ZBX-22588

ZBXNEXT-9015 asks to make this configurable, you're welcome to vote.

Meanwhile here are the patches that enable "rtsp" support that you can try with versions

• 6.4.11: zabbix-6.4.11-web-monitoring-ftp-rtsp.patch
• 6.2.9: zabbix-6.2.9-web-monitoring-ftp-rtsp.patch

Hi @dimir

The patch fixes my problem. You can close the case. Thanks for your support.

And as Tony asked in ZBX-23982 is it possible to add it by default in the next releases until ZBXNEXT-9015 will be delivered ?

Regards

Xavier

Adding this to future releases would mean partial implementation of the feature request. For now, it will remain only available as the two patches that were provided.

Since no changes in the product were made in the context of this task - closing Won't fix. For those interested - consider either the patches provided or voting for ZBXNEXT-9015.
