• make hosts selectable per dashboard instead of per widget and best with regex so we dont have to select hosts in every widget over and over => ZBXNEXT-6727
• add widget to show only 1 metric
• add gauge widget
• add percentile  => ZBXNEXT-6946

+1 for the gauge widget!

I would add my 2 cents:

• provide an API to extract the final rendered Graph, there are lot of benefits on that (Reporting)

Thanks

Will this the the resolution to ZBX-16162? I ask because we are only waiting since 3 years since simple graphs were crippled.

Will this the the resolution to ZBX-16162?

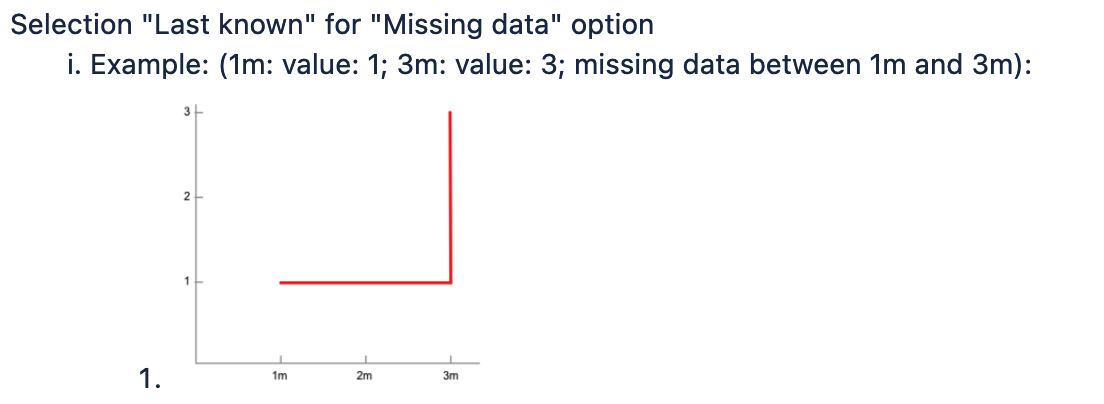

starko, it's planned to have it this way:

Sorry for the late reply.

If I understand you correctly, you are not guessing any data in between two data points, but instead are assuming that all data that has been throttled/discarded, was the same value as before, and therefore just continue the line completely horizontal?

pinging umike & yurtesen because they had a great discussion over at ZBX-16162 and they might want to add their opinion to your example picture.

starko,

If I understand you correctly, you are not guessing any data in between two data points, but instead are assuming that all data that has been throttled/discarded, was the same value as before, and therefore just continue the line completely horizontal?

Correct. This will be another option in "Missing data" selector. If there are any strong cases against this approach we'd like to know.

Kalimulin As far as I can tell, I like that approach.

The only question I have, and I know I'm a PITA here, is: How will this work in "Latest data"? I ask, because you mentioned:

This will be another option in "Missing data" selector.

And if I recall correctly, this is something you can configure in the Dashboard Graph Widget, but nothing like this can be configured in "Latest data". Does that mean, that there will be be a switch in Latest data to dis/enable that "Missing data" setting on-demand? Just like "Show items without data", for example?

Gauge widget now available.

https://github.com/jack-valko/Zabbix-Dashboard-Gauge

starko,

And if I recall correctly, this is something you can configure in the Dashboard Graph Widget, but nothing like this can be configured in "Latest data". Does that mean, that there will be be a switch in Latest data to dis/enable that "Missing data" setting on-demand? Just like "Show items without data", for example?

It's still not decided but there are several obvious options - to hardcode this setting to "Last known", make it globally configurable (e.g. in Administration->General->Gui), make it settable in the Latest data parameters (as in your example) or somehow make it settable in the Graph context. While having this in the Latest data seems to be the most straightforward and easily discoverable,  I'm not sure if it's the right place because (a) we would overload Latest data with the setting that will be probably set once and not touched in a year afterward (b) does not have a direct impact on how the data is displayed in the grid. So opinions welcome

Hi Kalimulin, if I might add my opinion here: I like your suggestion more than mine. You are right, it might clutter Latest data unnecessarily. I think your suggestion to set it in Administration->General->Gui is a lot better, because as you said: "that will be probably set once and not touched in a year afterward". So +1 for Administration->General->Gui
But now that I think about it: If it would be in Administration->General->Gui, would I enable that for all users?

With 6.2 around the corner, Kalimulin, can we say if this will be solved until release and most importantly ZBX-16162?

starko, this should be ready (hopefully) by 6.2 release within the scope in the task description: "Add stacked graphs, add the ability to reference items by ids, other visual changes". "Last known" will be supported too. But the corresponding Latest data changes to work with SVG graphs are postponed till 6.4.

That's sad to hear, but that's how priorities work. Let's hope that ZBX-16162 will be fixed by the end of 2022!
Thanks for answering my question!

Implemented in 6.2.0rc1 (master) db084adf41b

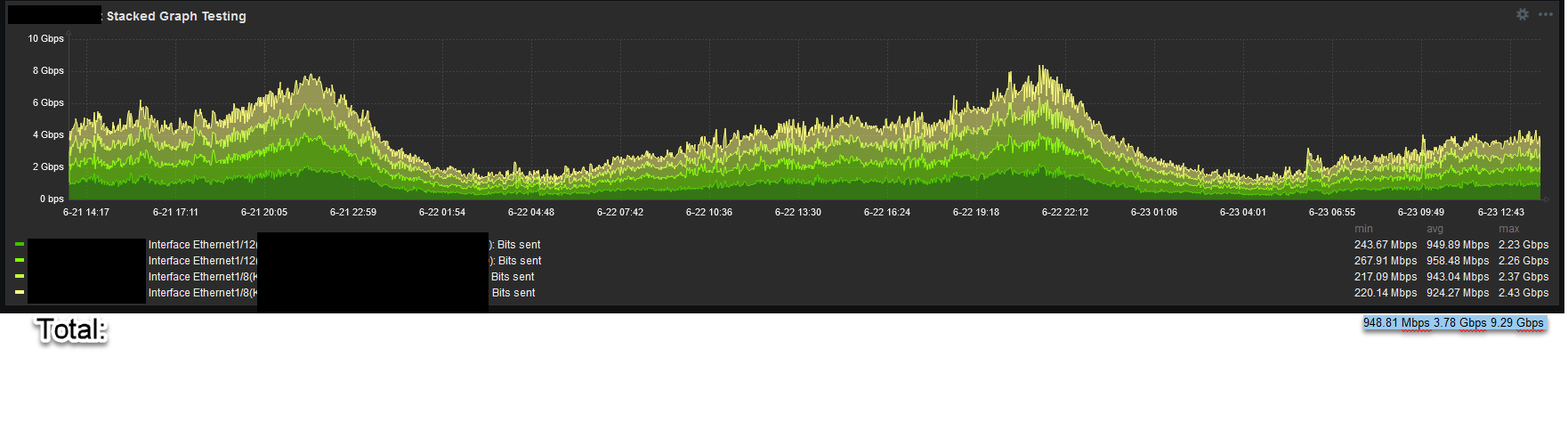

Would it be possible for a Stacked summary line in the legend that gives the stacked min/avg/max values and be a separate legend option from the items min/avg/max?

May I politely ask if ZBX-16417 is something to be considered in this change? I'm missing this desperately on the new Dashboards.

starko, please see: https://support.zabbix.com/browse/ZBX-16417?focusedCommentId=682080&page=com.atlassian.jira.plugin.system.issuetabpanels:comment-tabpanel#comment-682080

Thank you very much! I wasn't aware that this was already part of this change. (At least I didn't find it written anywhere?) EDIT: I found it in the Release Notes, must've missed it.
Anyway, thanks a lot! That was very important to us!

Perhaps I missed something, but since this was closed as fixed in 6.2. What happened to:

2. Replace PNG graphs with vector graphs in Latest data

3. Replace PNG graphs with vector graphs in Hosts and Dashboards

nathan.liefting, sorry for the confusion. It's not forgotten and will be a matter of separate tasks. The description is not clear enough about this but it says "This document describes step 1a." which is "Add stacked graphs, add the ability to reference items by ids, other visual changes".

@Alex Clear now, thanks! Slightly confusing indeed. I couldn't find it, but I guess there is no public ticket related to step 2 and 3 (the PNG replacement) then?

nathan.liefting, not yet.

Possibly caused ZBX-22350

Hello,

Same remak as nathan.liefting, who should create this zabbix next, Kalimulin or Zabbix community ?
We have no update about these tasks and no change on 6.4

mma, yes, unfortunately it didn't make it into 6.4. Vector graphs for the Latest data are currently scheduled for 7.0. It doesn't matter who creates the ticket in this case. When we are ready to do this work we'll look for an existing ticket, and make a new one if not found.
